Practical instructor and reference book for locomotive firemen and engineers: a practical treatise .. (1911)
Lockhart, Charles F. (Charles Fulton), b. 1872 · New York, The Norman W. Henley publishing co. · leaf 230

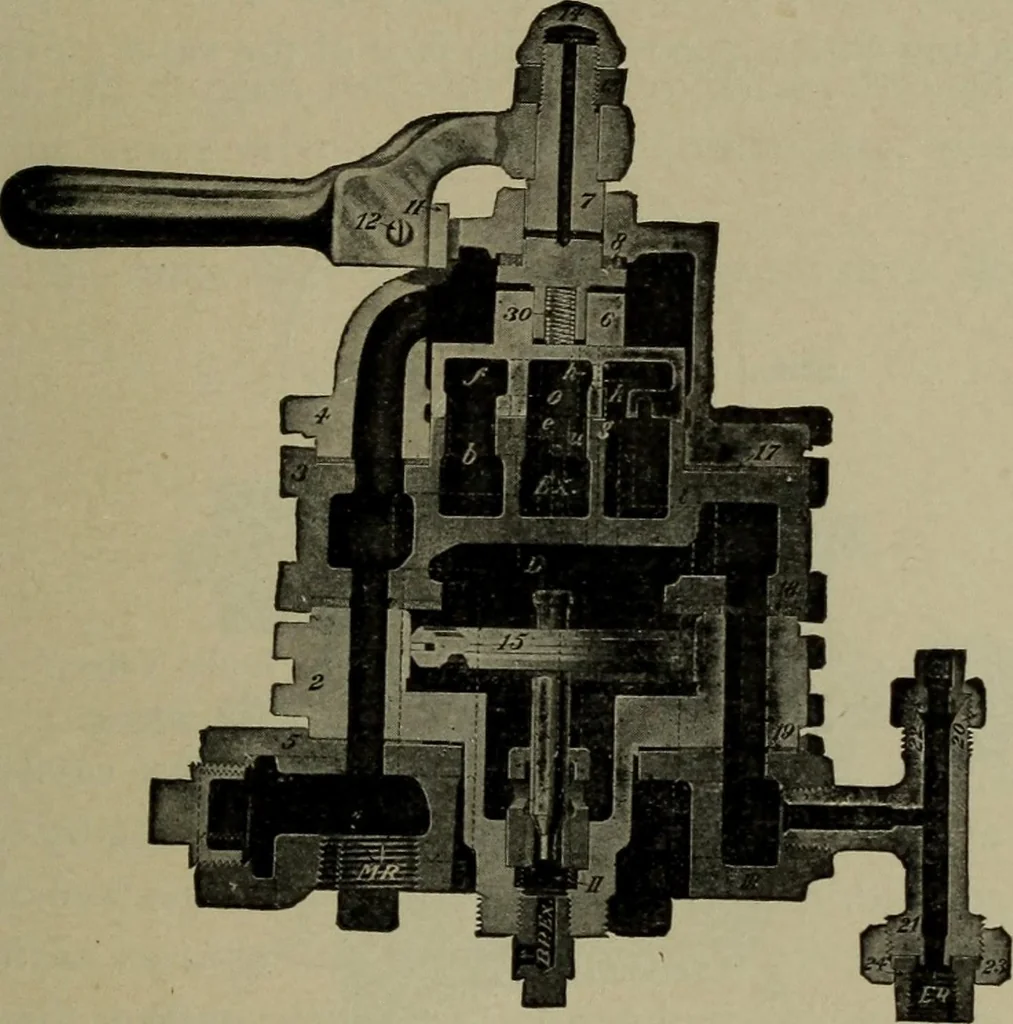

top case; 5, pipe bracket; 6, rotary valve; 7, rotaryvalve key; 8, key washer; 9, handle; 10, handle latch 15 H-6 AUTOMATIC BRAKE VALVE Fig. 70.—H-6 Automatic Brake Valve Removed from its Pipe Bracket H-6 AUTOMATIC BRAKE VALVE 227 spring; n, handle latch; 12, handle latch screw; 13,handle nut; 14,… … Fig. 71.—H-6 Automatic Brake Valve, Sectional View, No. i. small union swivel; 23, large union nut; 24, large unionswivel; 25, bracket stud; 26, bracket stud nut; 27, boltand nut; 28, cap screw; 29, oil plug; 30, rotary valvespring; 31, service exhaust fitting. 228 ROTARY VALVE ROTARY VALVE, H-6…Locomotives
