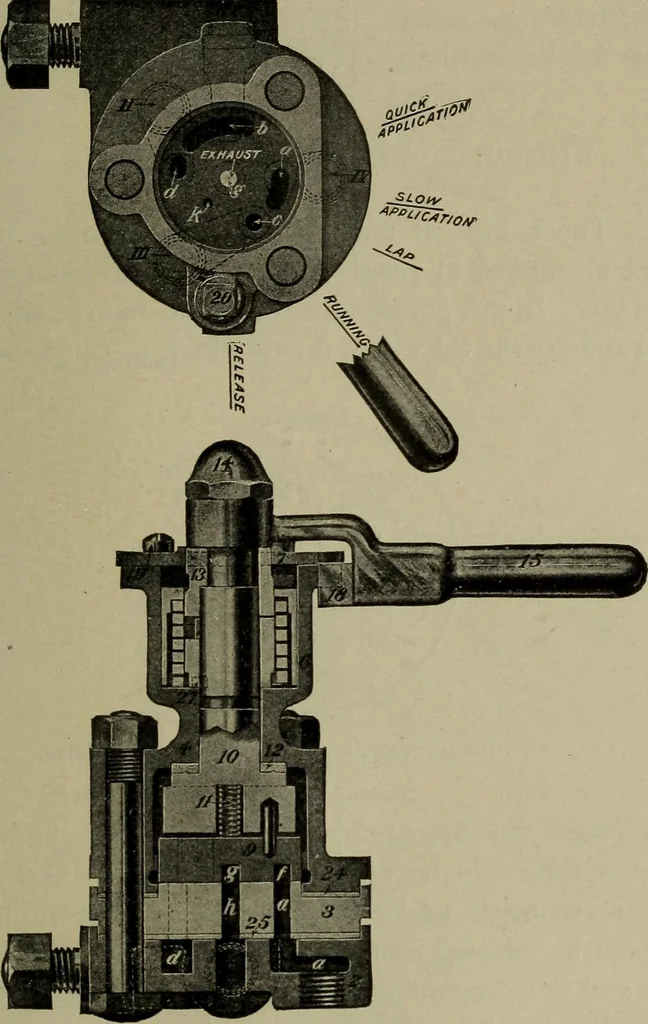

through the rotary valve and connects withport k in full release position. Referring to the valve seat, port b leads to the reducingvalve pipe; port a leads to that portion of the distributingvalve pipe which connects to the distributing valve at IV.Port c leads to the other portion of the release… … Fig. 76.—S-6 Independent Brake Valve, Sectional View. 240 RUNNING POSITION, S-6 TYPE center is the exhaust port leading dov/n directly to theatmosphere. Port k is the warning port leading to the atmosphere. RUNNING POSITION, S-6 TYPE 654. The handle of the S-6 independent brake valveshould be…
