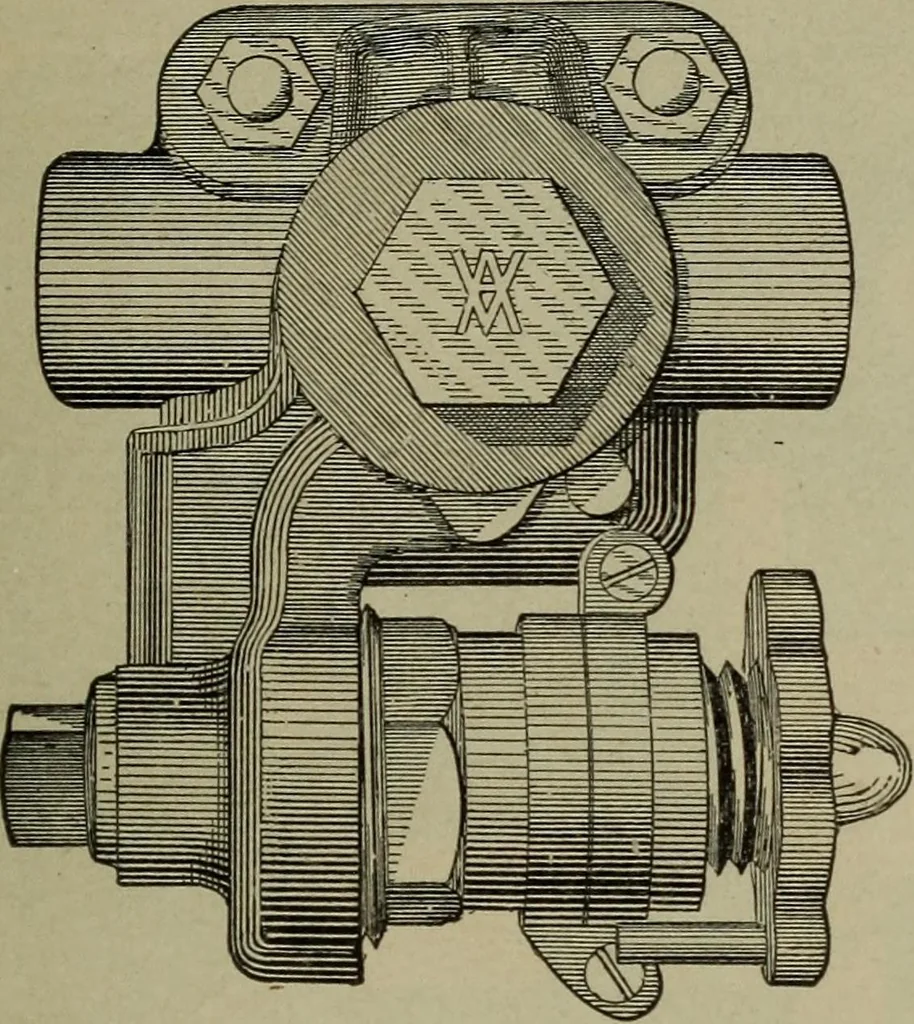

s the brake pipe pressure more accurately than the old-style valves. It has a high and low brake pipe pressurecontrol feature, which makes it very easy to change fromlow- to high-pressure braking power. THE B-6 FEED VALVE 245 663. This valve is connected directly to main reservoirpressure and… … Fig. 79.—B-6 Feed Valve. 664. The names and numbers of the parts as shown inthe illustrations are as follows:—2, Valve Body; 3, PipeBracket; 5, Cap Nut; 6, Piston Spring; 7, Piston SpringTip; 8, Supply Valve Piston; 9, Supply Valve; 10, SupplyValve Spring; n, Regulating Valve Cap; 12,…
