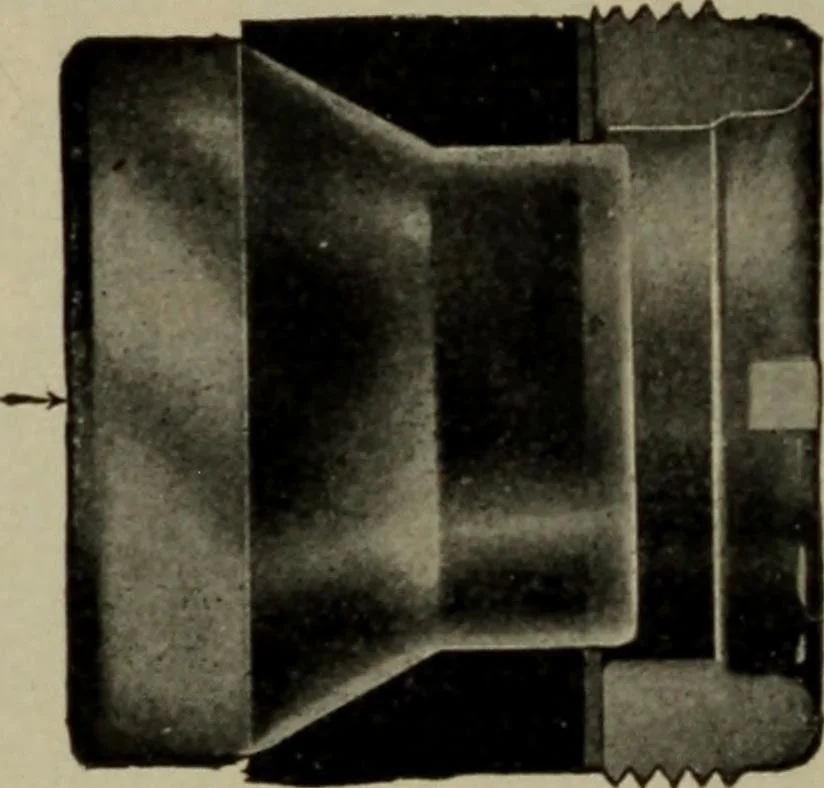

valve; ee, feed valves to steam chest and cylinders;/, feed valves to air pump; / / /, sight feed glass drainvalves; x x, auxiliary oil cups; h h, hand oiler valves;j 7, auxiliary oil cup valves. 96 LUBRICATOR DEFECTS The illustration, Fig. 18, shows a sight feed glass withpacking and follower nut.… … Fig. 18.—Sight Feed Glass and Fittings for Detroit Lubricator. drain valve T, at the bottom of glass, and draw all the oiland water out of them; then close the valve and allow theglasses to fill with water. After the glasses have becomecompletely filled with water the feed valves may then beopened.…
