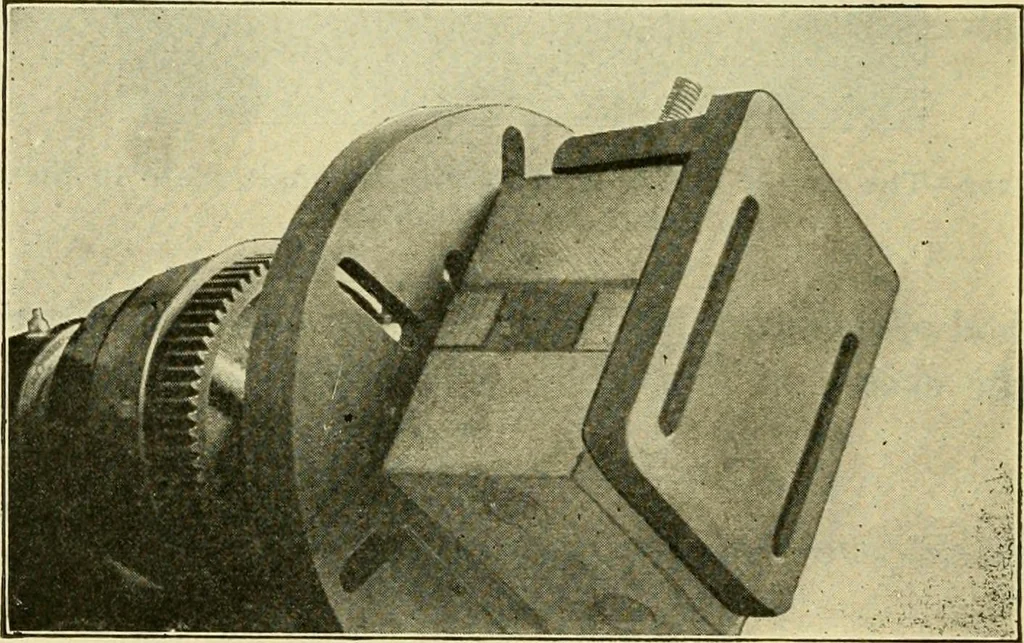

the square should be laid onthe bed of the lathe and its edges brought against thesurfaces of the angle plate to determine whether it isperfectly square or parallel with the surfaces of the faceplate. If it is not, thin pieces of sheet brass can be placedunder one block or the other until the plate… … Fig. 204—The angle plate mounted on the lathe impossible to do a certain piece of machining until he hasfigured out the possibility of employing blocks and boltsto mount it on the lathe. Sheet metal can be turned on the face plate as showmin Fig. 205. First, it will be necessary to cover the…
