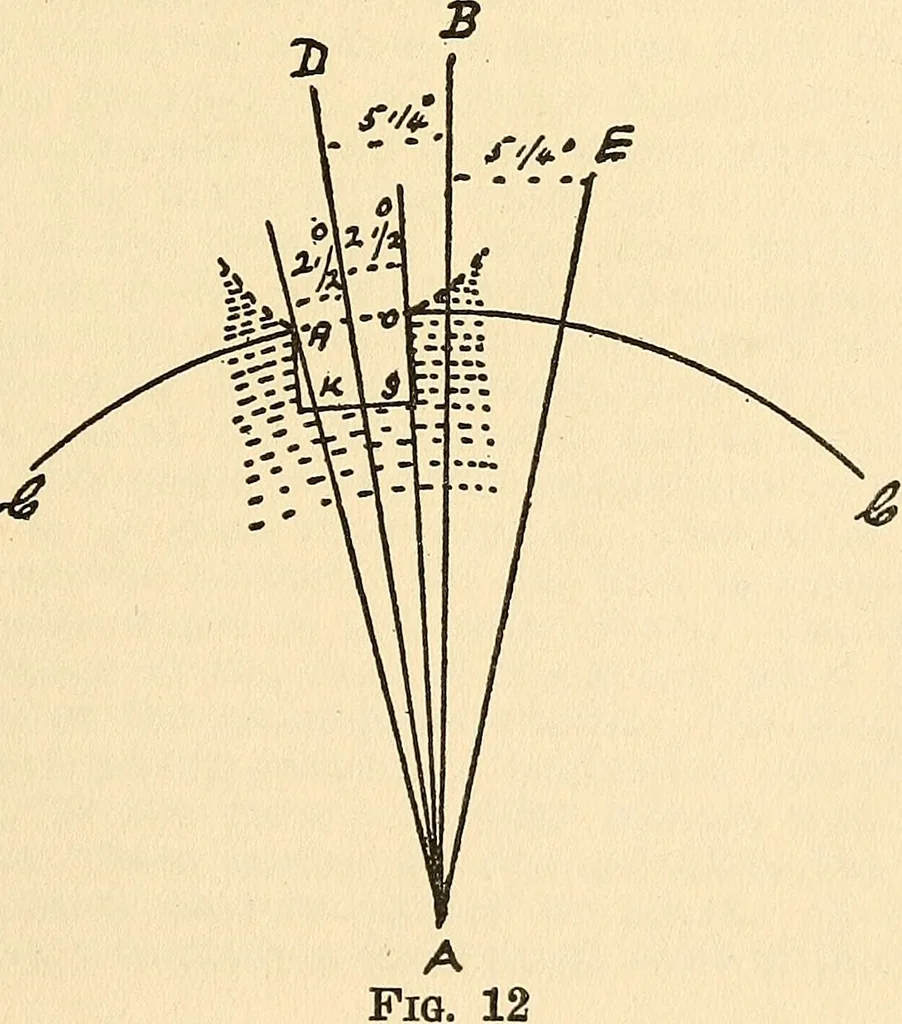

he fork angles that angle which separates the guard pin(lever against bank) from the edge of the table roller. 139. Fork Specifications.—Angular motion of lever, IQi^degrees; width of slot, 5 degrees. Acting length of lever toequal the distance between the centers of escape wheel andpallets. The… … 28 centers, A being the pallet center. With A as center, and aradius equal to the distance between the escape wheel and pallets,draw the arc C C. Upon some part of the arc C C the slot cornerswill be located, consequently this arc defines the acting length ofthe lever. The angular motion of the…
