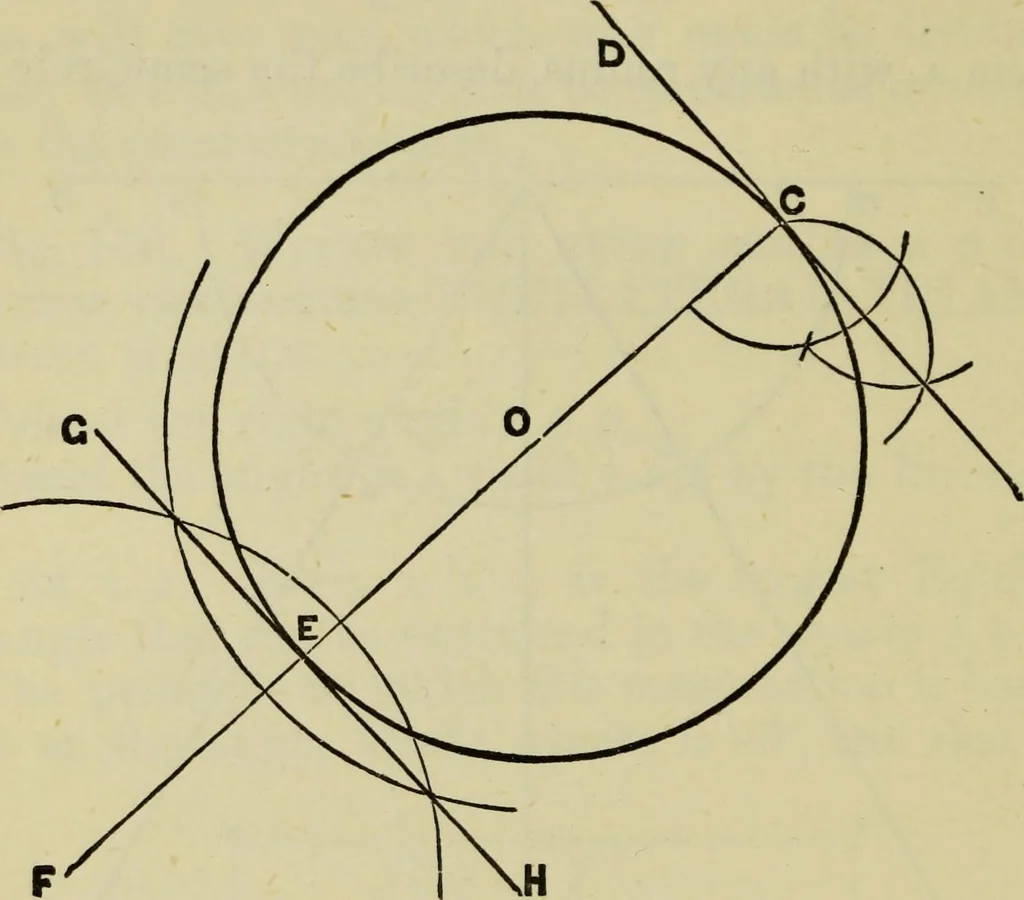

e of the requiredaltitude. Fig. 108. To DRAW A TANGENT* to a circle atthe given point c. (1.) Draw a radius from the centre o to the point c.At c construct a right angle, o c d. * A Tangent is a straight line which touches a circle at one point,but does not cut off any portion of the circumference.… … Fig. 108. Draw radius o e, and produce until e f equals e o.Bisect F o by the line g h, which will be the tangentrequired. Fig. 109. To CONSTRUCT AN EQUILATERALTRIANGLE about a given circle. From any point in the circle, as a, with a radiusequal to the radius of the circle, describe an arc…
