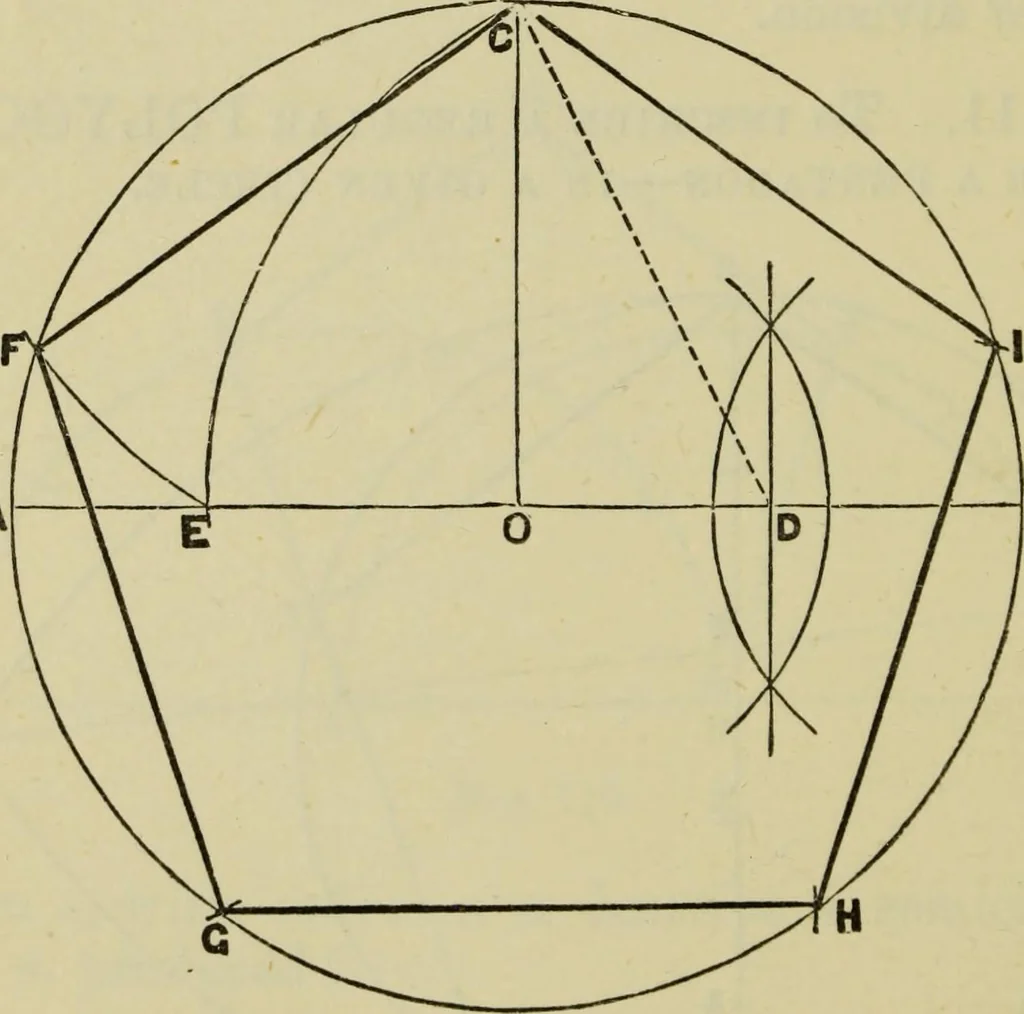

hus complete the figure. As in the preceding problem any polygon may be thusformed, the diameter in this case being divided into thenumber of parts corresponding with the sides of therequired polygon. It is, however, indispensable thatthe line c d be drawn through the second division. Fig. 112. To… … B Fig. 112 in E. THE CONSTRUCTION OF GEOMETRICAL FIGURES. 305 From c, with, radius c e, describe an arc cutting thecircle in f. Draw c r, whicli will be one side of the Pentagon.Set off the length c f, round the circle, viz., g, h, i.Draw lines f g, g h, h t, and i c, which will completethe figure.…
