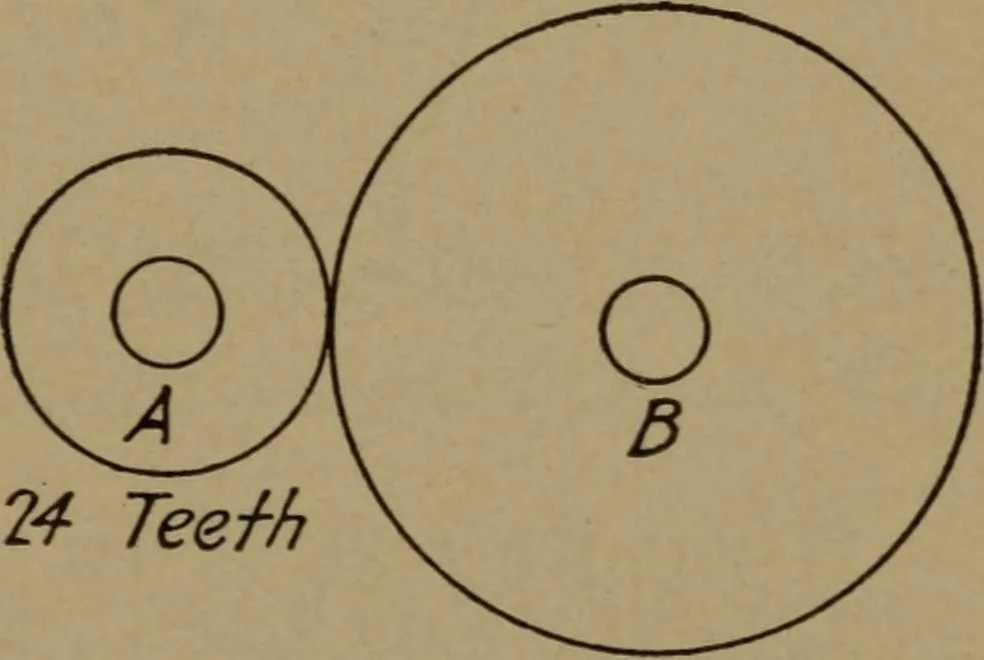

to 2, ^ ^Tee^/? , . Fig. 81. or expressed as a proportion. Speed of B: Speed of A = 1:2 and the ratio between the speeds and the number of teeth written as a proportion is Speed of B : Speed of A - Teeth of A : Teeth of B.If in Fig. 81 gear A had 24 teeth and B 96 teeth, thesmaller gear would make… … 60 MECHANICS AND ALLIED SUBJECTS driver which is nearer the source of power and the secondgear which receives power from the driver is called thefollower. 26. Gear Trains (Simple Gearing).—In the case ofgear trains there may be several drivers and several fol-lowers. When the teeth on a gear turn…
