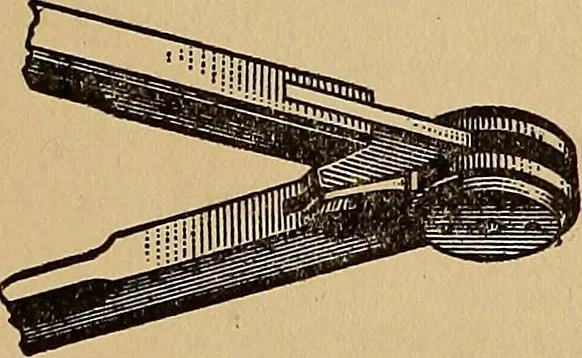

s a medium between the large compasses and thespring-bow set. The most important part of a pair of compassesis the bead, wbieb forms the hinged joint. Thereare two forms of joints: the tongue-joint, as shownin the left-hand view in Fig. 3, in which the headof one shank has a tongue, generally made…
