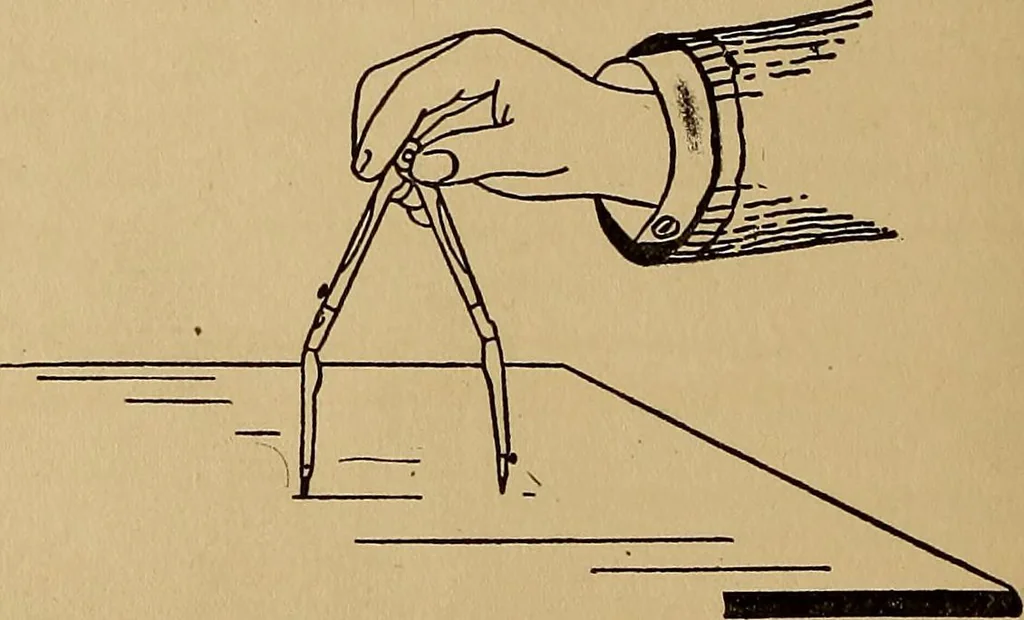

to hold its adjust-ment when once set. Figure 4 shows the methodof holding a compass, and the correct position of the fingers before and after describing a circle.The non-removable leg of the compass should car-ry a needle-point, that may be easily replaced iflost or damaged, and it should have a… … Fig, 4—Correct Manner of Holding a Compass. ing the leg of the compass a little longer or short-er as may be desired. The socket for the lead in the pencil-pointshould hold the lead firmly without the necessityof wedging it in the socket by means of paper orsmall pieces of wood. When first…
