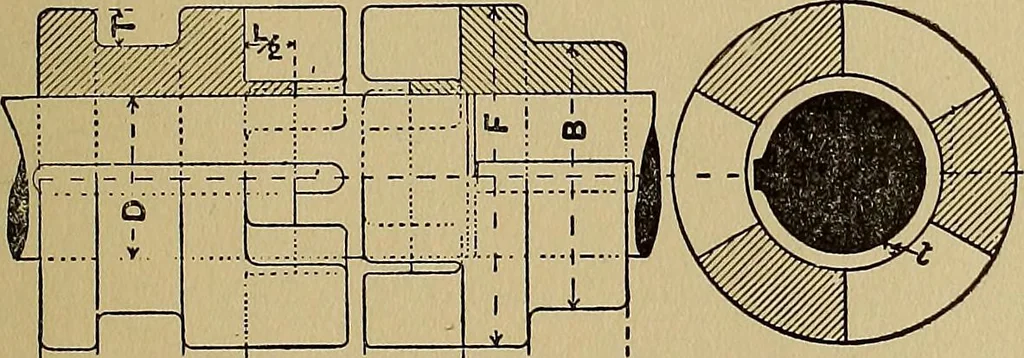

Pig. 191—Cast-iron Flanges for Wrought-iron Pipes. … hT>^-E--^T* W- L •-^^ T->*--L-> Fig. 192—Square-jaw Detachable Coupling. Band Friction Clutch. In the friction clutch,shown in Fig. 194, there is a sleeve. A, which iskeyed to the shaft and also attached to the frictionband, B, by means of bolts, as shown. The frictionband, B, encircles…
