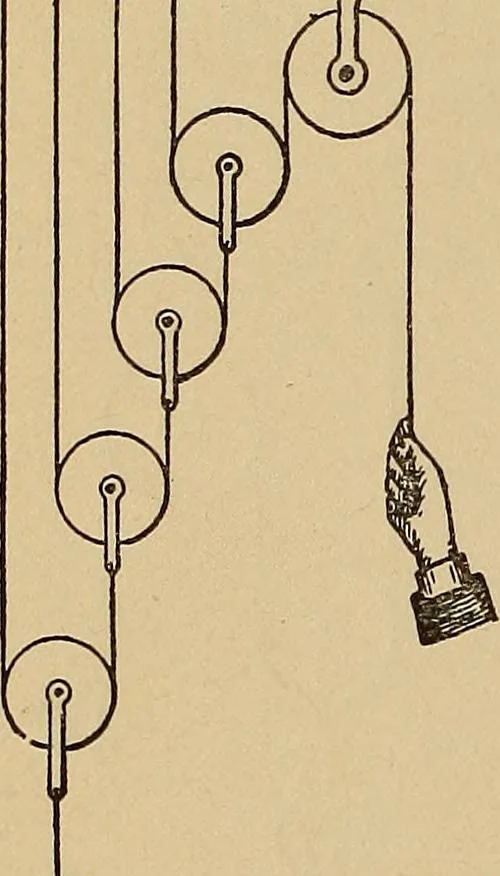

When the fixed endof the rope is attachedto the fixed block, thepower may be found bydividing the weight bytwice the number ofmovable pulleys. Whenthe fixed end of the rope ®is attached to the mov-able block, the powerPj -^-j^g may be found by divid- ing the weight by twicethe number of movable… … To find the weight that will be balanced by agiven power. When the rope is attached to thefixed block, multiply the power by twice the num-ber of movable pulleys. When the rope is attached to the movable blockmultiply the power by twice the number of mova-ble pulleys plus 1. The Inclined Plane. The…
