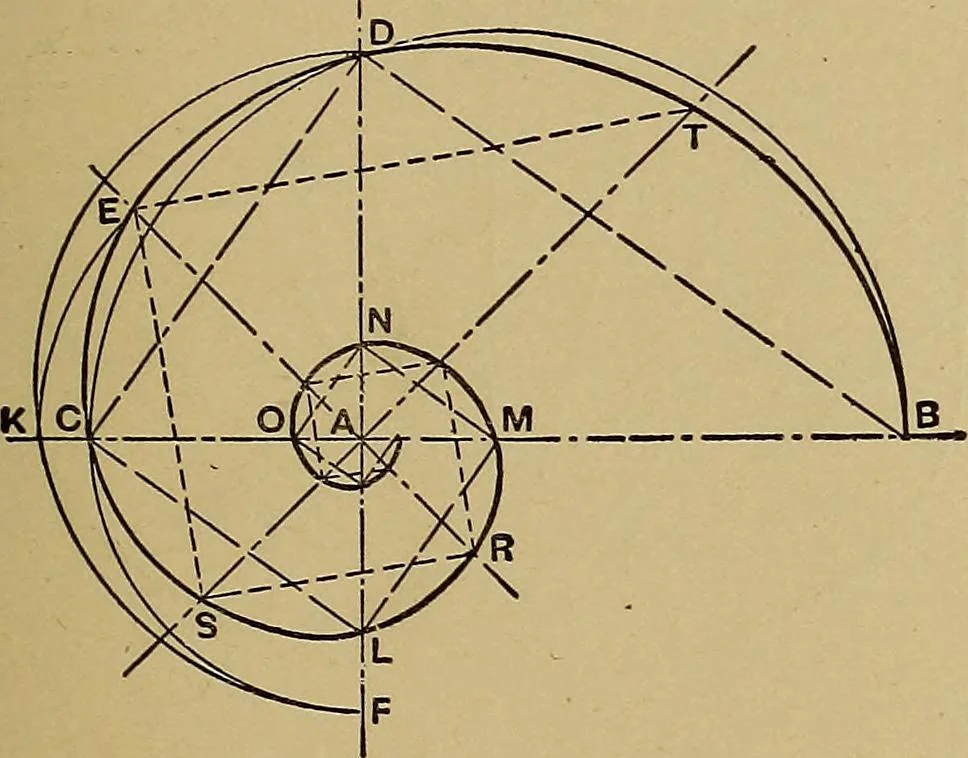

as AD, Fig. 125, which bisects the anglebetween two other radii, as AC and AB, is a mean 52 th:e development of curves 53 proportional between them, that is, (AD)2=AOxAB. This spiral is called equiangular he-cause the angle between any radius vector and thetangent to the curve at its extremity is… … Fig. 125—The Logarithmic Spiral. Its intersection with the semicircle at D will deter-mine the required point, and AD will be a meanproportional between AC and AB. Other pointson the cnrVe lying on the diameters BC and DFmay b^ obtained by intefsecting these diameterswith the pefpendiculafs CL, LM,…
