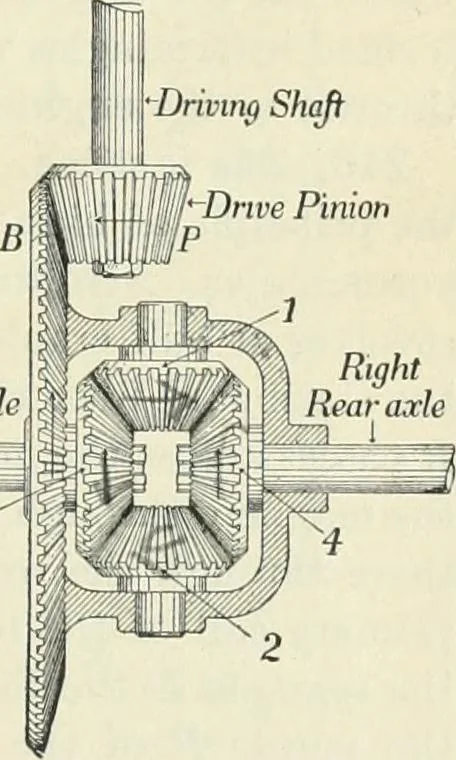

ath so assimultaneously to engage 5 and 7. Suchan interposition of a third gear wheelbetween 5 and 7 obviously reverses thedirection of rotation of the driving shaft.244. The differential. An automobileis driven by power applied to the rearaxle. This requires the axle to be in two parts with a… … Fig. 189. The differential 198 CHANGE OF STATE attached to the driving shaft rotates the main bevel gear B, to whichare rigidly attached the differential gears 1 and 2. The left axle isdirectly connected to gear 3, and only indirectly connected to the mainbevel gear B through gears 1 and 2. In…
