Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 500

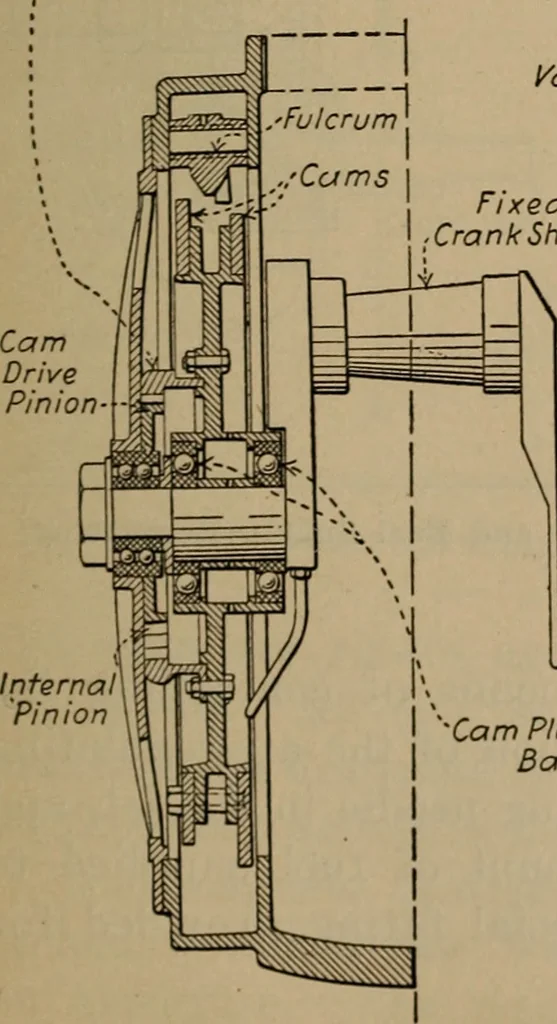

erated by this simple lever and is attached to it insuch a way that it can be pulled down to depress theinlet valve and pushed up to open the exhaust valve. Le Rhone Engine Details 501 A carburetor of peculiar construction is employed inthe Le Bhone engine, this being a very simple type asoutlined… … Valve Actuating Rod- Air Cooled Cylinder-*:- Fulcrum.„_ Valve Operating...Lever Fixed Cam / .CrankShaft Follower-- H HFI
Airplanes
