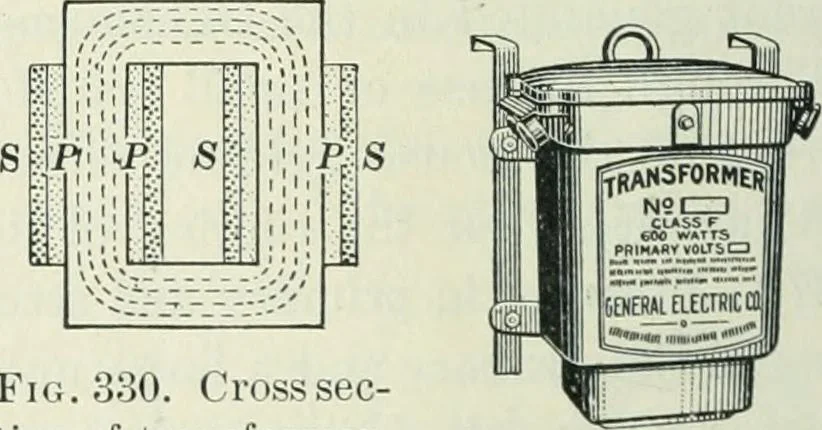

Fig. 329. The core typeof transformer Fig. 330. Cross sec-tion of transformer,showing shape ofmacfnetic field … Fig. 331. Trans-former case / transformer. The closed magnetic circuit of the core is indicated by thedotted lines. The primaries and the secondaries are indicated by theletters P and S. Fig. 331 is the case in which the transformer is placed.Such cases may be seen attached to poles outside of…
