Millikan, Robert Andrews, Gale, Henry Gordon · Boston : Ginn and Co. · leaf 497

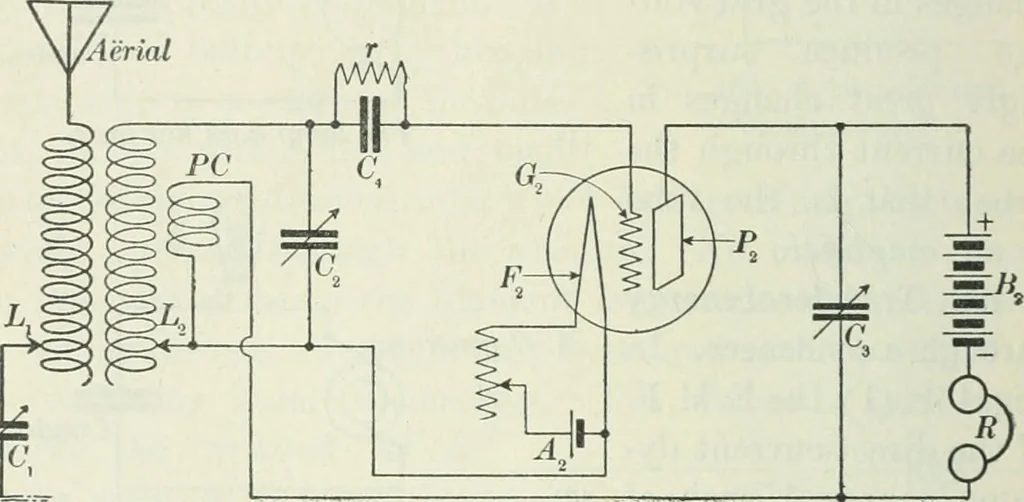

ty are widely used in the circuits of wireless apparatusas aids in tuning, and they permit passage of electrical energyin the manner explained above. 493. The receiving station. Fig. 469 represents a regenera-tive receiving circuit capable of receiving long or shortwaves. When the modulated waves… … ■^- Ground Fig. 4(59. A regenerative receivinsr circuit grid (j,, thus causing corresponding changes in the strengthof the electronic current flowing from the incandescent fila-ment F„ to the plate P^ and thence back through the platecoil FC. The plate circuit is so tuned with respect to thegrid…
Physics
