Radio for everybody; being a popular guide to practical radio-phone reception and transmission and to the dot-and-dash reception and transmission of the radio telegraph, for the layman who wants to apply radio for his pleasure and profit without going into the special theories and the intricacies of the art (1922)

Lescarboura, Austin C. (Austin Celestin), 1891- · New York, Scientific American publishing company [etc.] · leaf 323

An illustration from Radio for everybody; being a popular guide to practical radio-phone reception and transmission and to the dot-and-dash reception and transmission of the radio telegraph, for the layman who wants to apply radio for his pleasure and profit without going into the special theories and the intricacies of the art, 1922, leaf 323

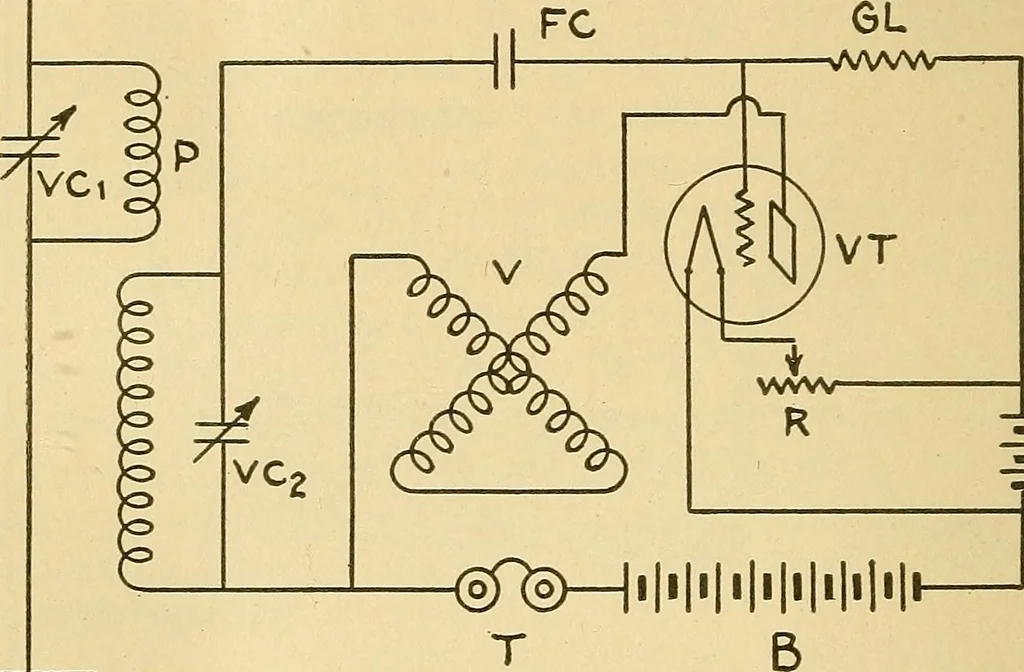

hows the assembly of the fixed con-denser. The third shows a side view of the assembledcondenser. 304 RADIO FOR EVERYBODY hand, is wound on the movable form, as indicated. Eachwinding should consist of 60 turns of No. 20 doublecotton covered wire. No nails should be used in makingthis instrument,… … ±A IIMII How the various components of the simple regenerative setare connected together. A—antenna; G—ground; P—primary;S—secondary; VCl—primary condenser; VC2—secondary con-denser; FC—fixed condenser; GL,—grid leak; VT—detectortube; A—filament battery; B—B or plate battery; K—rheo-stat;…
