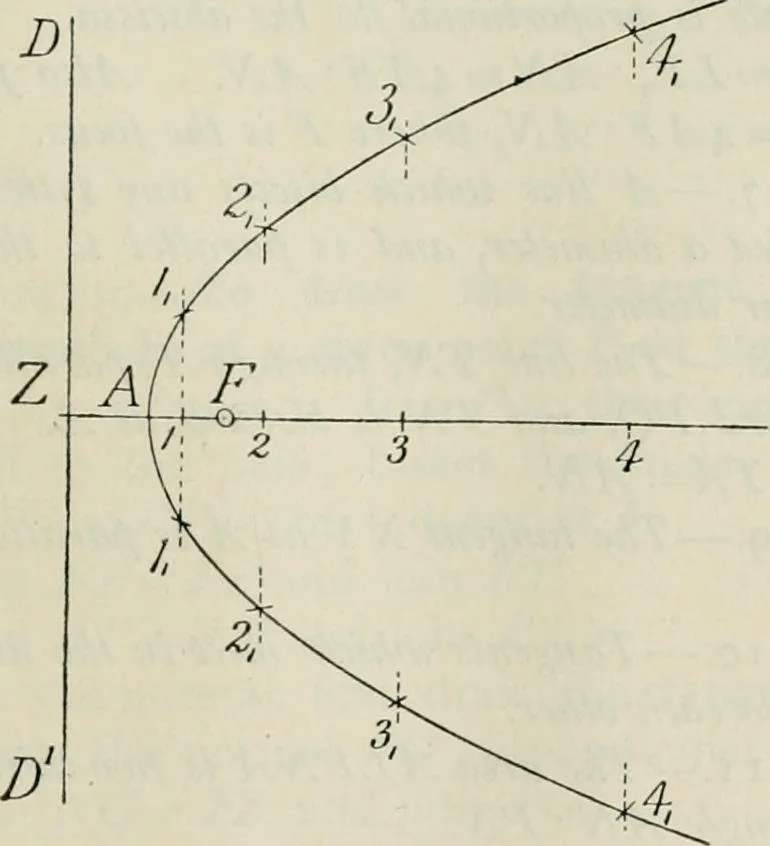

the parabola, for AF= AZ. A is calledthe vertex, and the perpendicular ZF the axis of the para-bola. The latter is a line of symmetry for the curve. To draw the curve. Select a series of points 1, 2, 3 . . .on the axis as shown, and through these points draw linesperpendicular to the axis. With Fas… … ioo PRACTICAL PLANE GEOMETRY chap. 100. Properties of the parabola.—In the upper figurePN and PM are perpendicular to the axis and directrix.PT is the tangent and PG the normal at P, and A Y is thetangent at the vertex. PN is called the ordinate, and NGthe subnormal for the point P. The double…
