Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 256

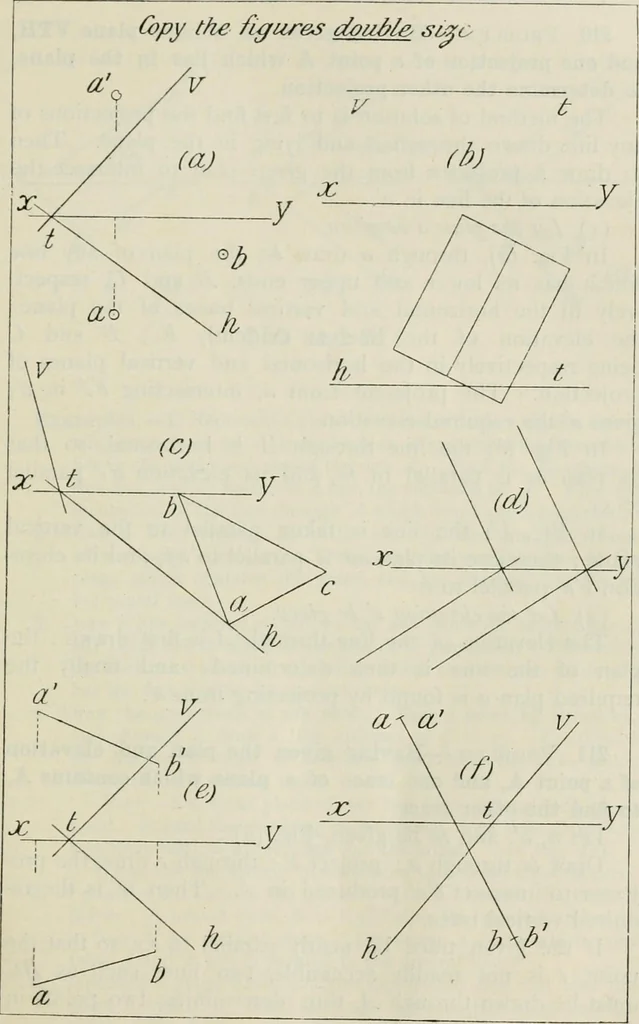

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 256
(a) determine a line containing B, lying in the plane and making 50° with vt. Also one Inclined at 500 to the vertical plane.*10. In Fig. (<■) the triangle whose plan abc is given lies in the given plane. Determine the elevation and true shape of ABC.*11. In Fig. (e) determine the trace of the… … R 242 PRACTICAL SOLID GEOMETRY chap. 210. Problem.—Having given an oblique plane VTH,and one projection of a point A which lies in the plane,to determine the other projection. The method of solution is to first find the projections ofany line drawn through A and lying in the plane. Thento draw a…

Geometry, Descriptive -- Problems, exercises, etc · Geometry, Plane -- Problems, exercises, etc · Graphic methods

Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
