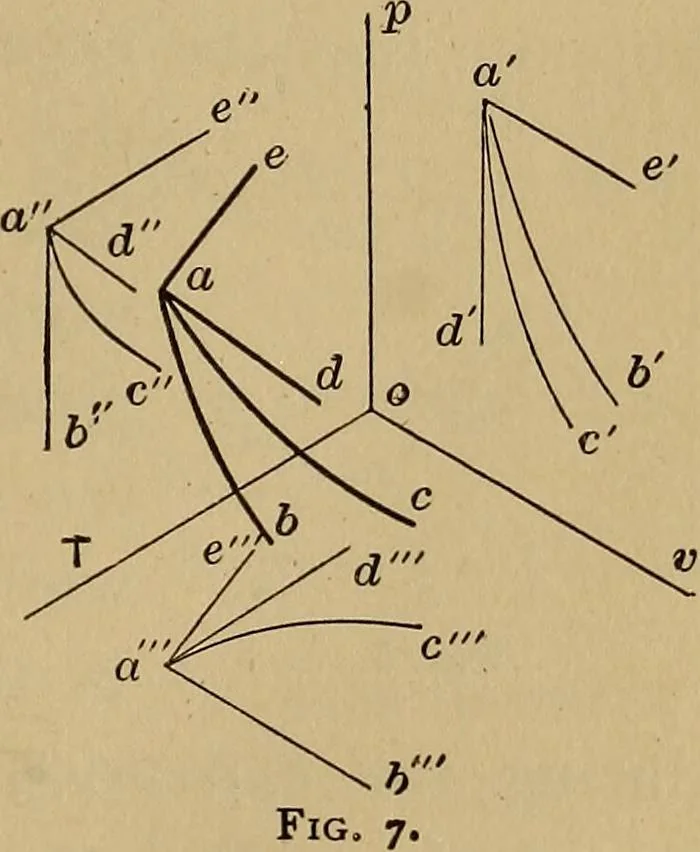

ne parallel to the{p, t) plane are straight fines and areof course projected as straight lineson that plane and on the (_/>, v) plane;in like manner the sections by planesparallel to the (/, v) plane are straightlines. The adiabatic fine in spaceand as projected on the {p, v) plane is probably… … 20 FIRST LAW OF THERMODYNAMICS planes. Beginning at the point a in space the line ah is anisothermal which is projected as a rectangular hyperbola ah^on the (p, v) plane, and as straight lines a^b^^ and ah onthe (/>, /) and (/, v) plane. The adiabatic hne ac is steeperthan the isothermal, both…
