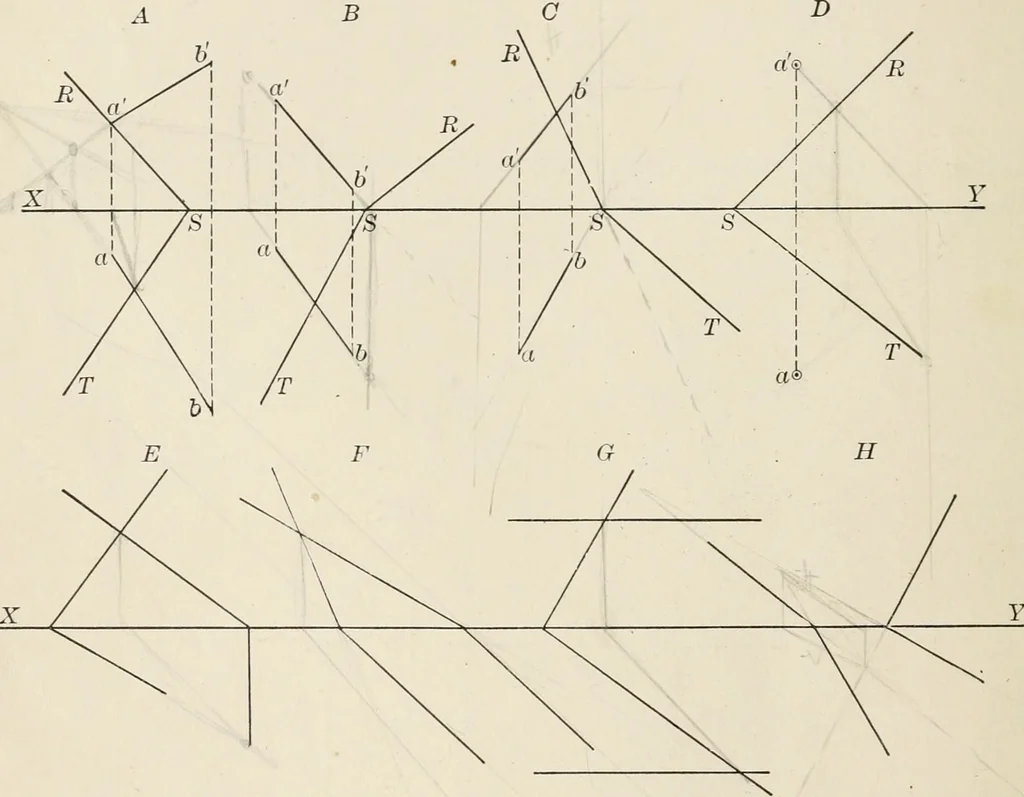

e elevation of the intersection will meet, or cross, the elevation of theline, or the line produced, at the elevation of the intersection point required, andthat if a plane perpendicular to the V.P. is used to contain the line, it will be theplan of the intersection line that will meet the plan of… … Y 1 2. Find the distance of the point A from the plane RST at D. 3. Find the projections of the intersection line in each of the cases at E, F, G and H whereplanes are arranged so as to intersect each other. Work to a large scale. CHAPTER VIIIPARALLEL PLANES Section 16. It needs no demonstration to…
