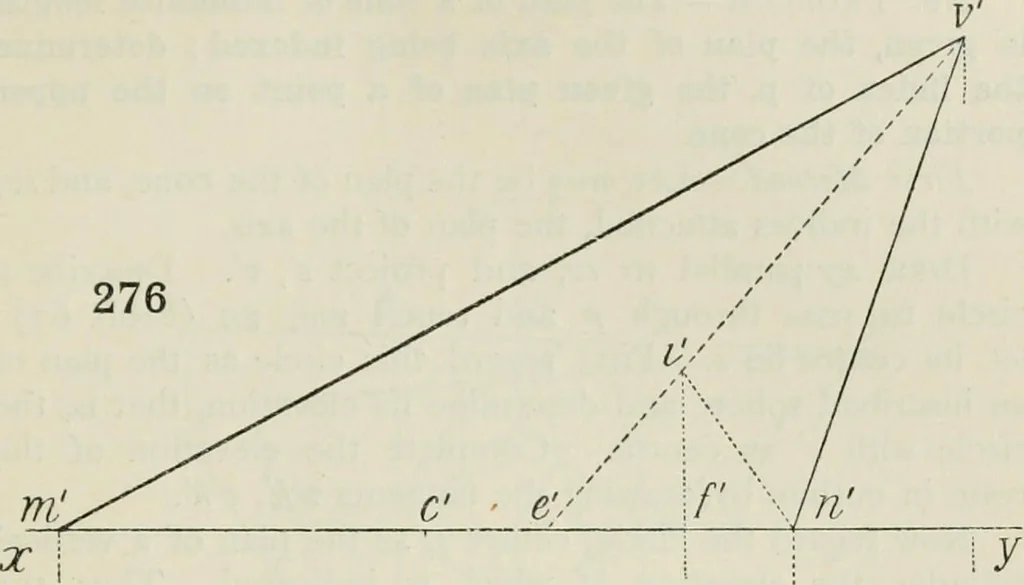

in Prob. 79, and the ellipse con-structed. The plan of the cone is completed by drawingtangents from v to the ellipse. 277. Problem.—Having given the projections of cylinderof indefinite length, to determine the horizontal trace of thecylinder. (No figure.) As in the last problem, the axis of the…
