The American house-carpenter; a treatise on the art of building, and the strength of materials (1867)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 343

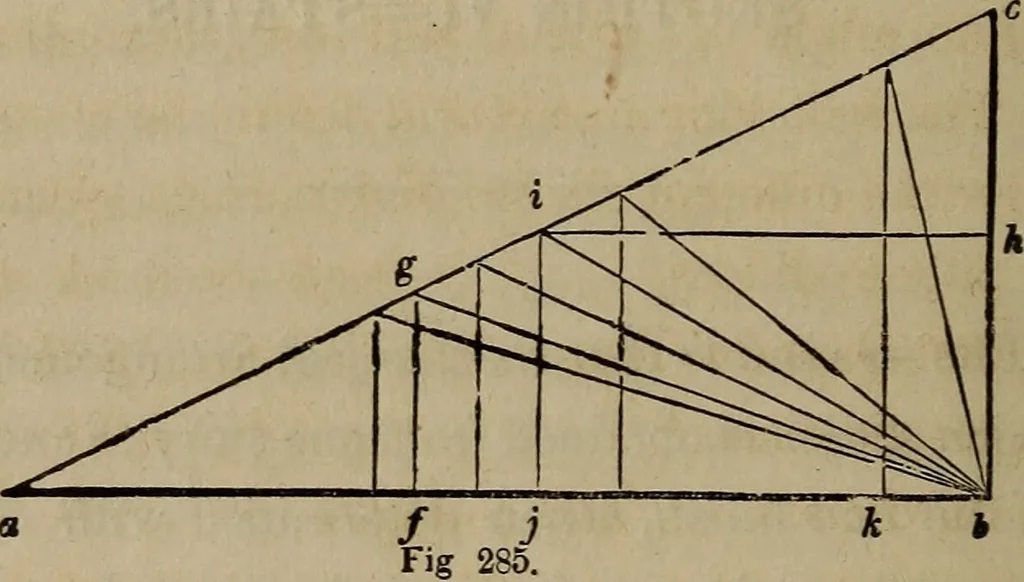

und ; 42 330 AMERICAN HOUSE-CARPENTER. and that, although the tread and rise cannot be proportionedmerely in accordance with the style and importance of the build-ing, yet this may be done according to the angle at which thefjght rises. If it is required to ascend gradually and easy, thelength from… … 451.— To proportion the rise and tread to one another.Make the line, a 6, {Fig. 285,) equal to 24 inches ; from 6, erecih c, at right angles to a b, and make b c equal to 12 inches ; join aand c, and the triangle, a b c, will form a scale upon which tograduate the sides of the pitch-board. For…
Carpentry · Architecture
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
