Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 376

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 376

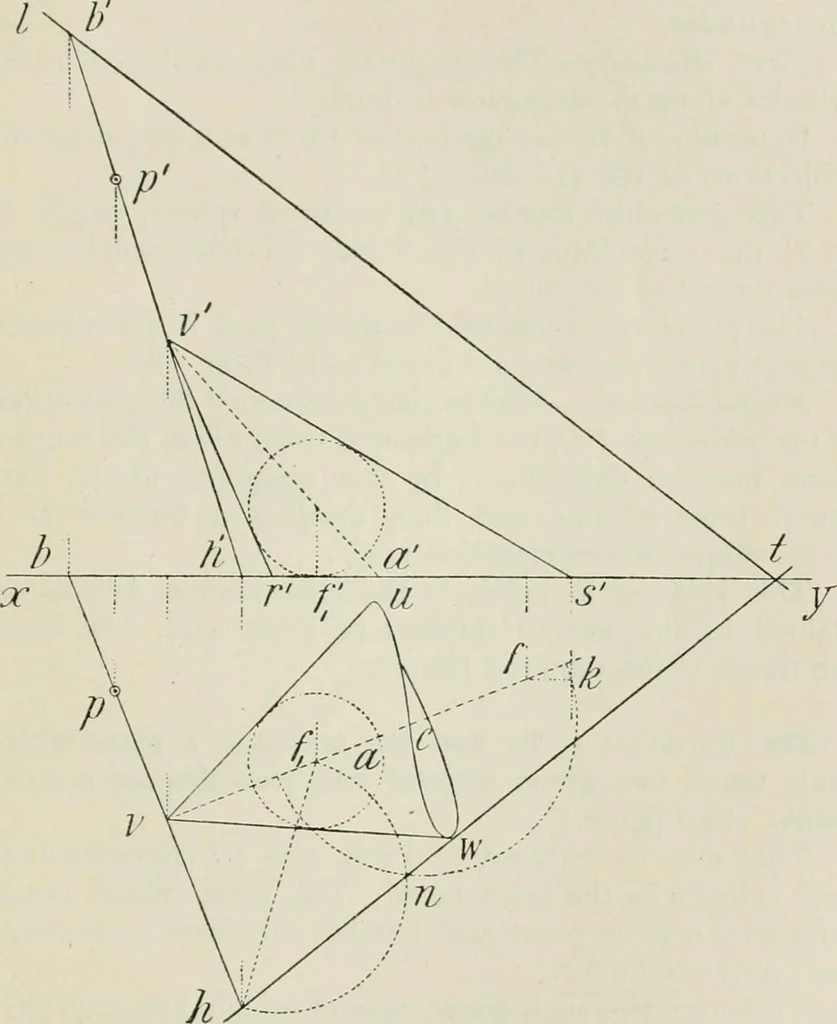

of a plane which shall touchthe cone of Ex. 1, page 354, and pass through a point P, 1 tothe right of the vertex, 2 in front of the vertical plane, and 1above the ground. 2. The axis VA of a cone, vertical angle 250, coincides with xy. Apoint P is 1 \ distant from both planes of projection, and… … 362 PRACTICAL SOLID GEOMETRY chap. 297. Problem. — The projections of a cylinder, axisAB, being given, and p the plan of a point P on thesurface of the cylinder, it is required to determine thetraces of a plane which shall pass through P and touchthe cylinder. First Method. — The required plane…

Geometry, Descriptive -- Problems, exercises, etc · Geometry, Plane -- Problems, exercises, etc · Graphic methods
