Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 435

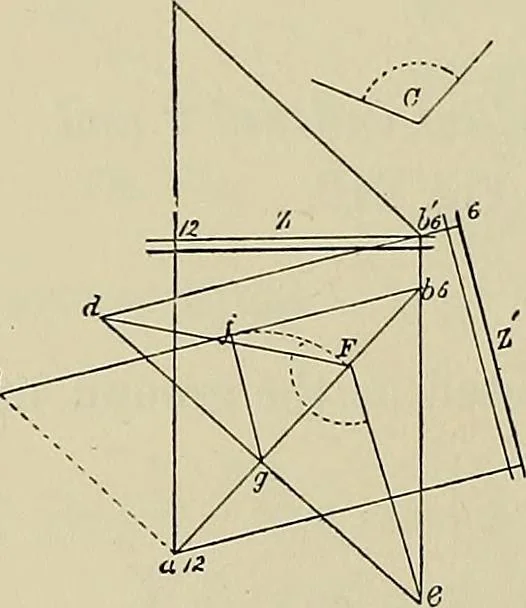

Ab. With g as centre, con-struct / on to the plane of referenceab in P. Draw a horizontal line in plane Z at the level of b,as be. Join Pe. Draw Fd, making an angle with Pe equal tothe given angle C, and meeting de in d. As de is the H.T. of a plane, it must be on the plane ofreference, which is at… … Fiff. 214. HORIZONTAL PROJECTION 415 IROBLEM 175. To determine the angle hctwccn tivo given planes. Fig. 215. This is similar to Prob. 99. Let Z and Z be the given planes, and 7 the level of theplane of reference. Note.—These planes have the same b indices to simplify the construction. Ifthey were…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
