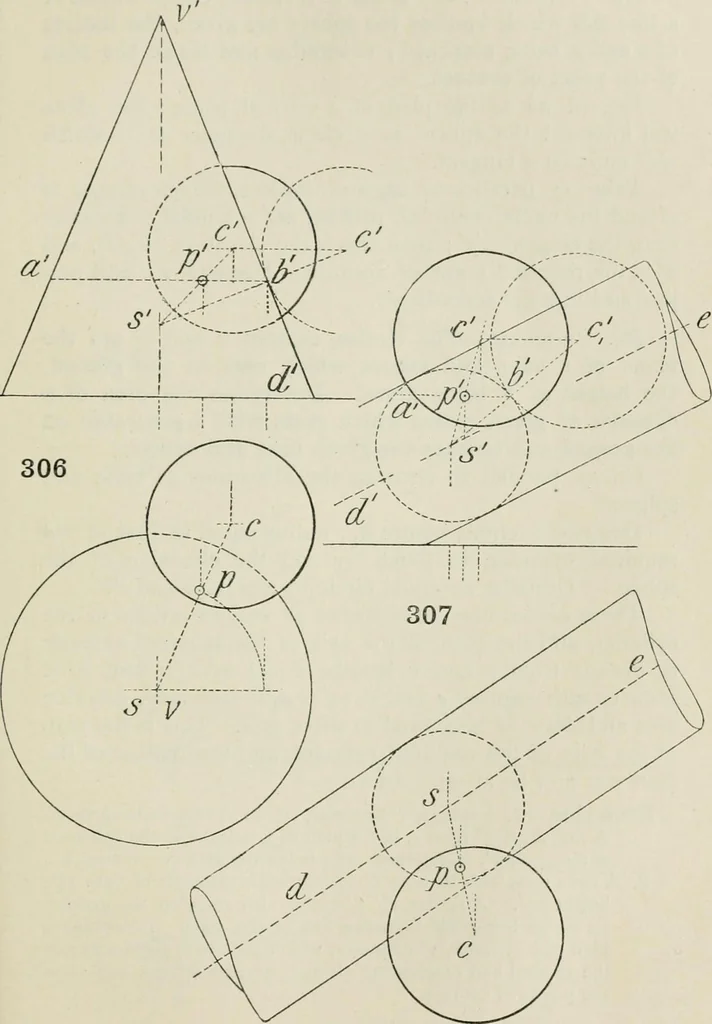

und ; diameterof base 2, height 3. Draw the plan and elevation of asphere, i# diameter, which shall touch the given cone at apoint 2 from the vertex ; the elevation of this point being -j?to the right of that of the axis of the cone. 2. The plan and elevation of the axis of a cylinder, 2diameter,… … 374 PRACTICAL SOLID GEOMETRY chap. 309. Problem.—The plans of a sphere, centre C, and ofa line AB which touches the sphere are given, the indicesof c and a being attached ; determine and index the planof the point of contact. Regard ab as the plan of a vertical plane ; the planewill intersect the…
