Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)
Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 476

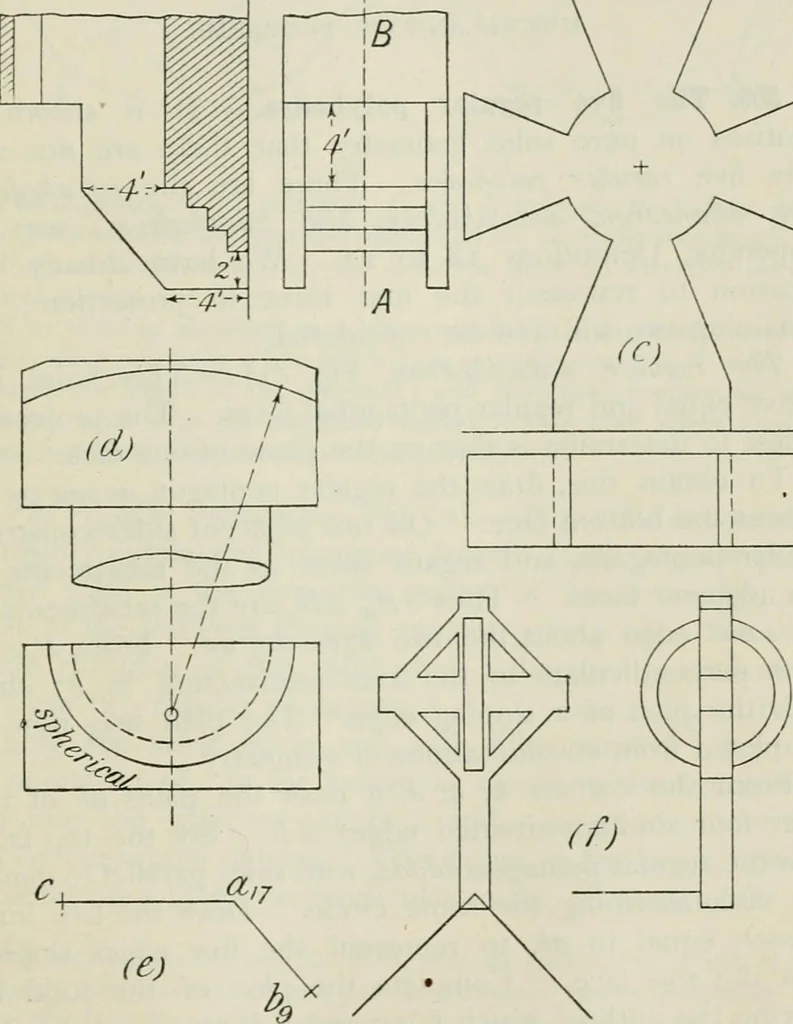

metric plane to betaken parallel to a diagonal such as fg, passing through twoopposite edges of the fluted column. An isometric scale is notto be used. (1897) 12. Draw three lines meeting at a point and making angles of 120°, 130°, noQ, with each other. These lines are the plans of theedges of a… … ^r + ] ix
