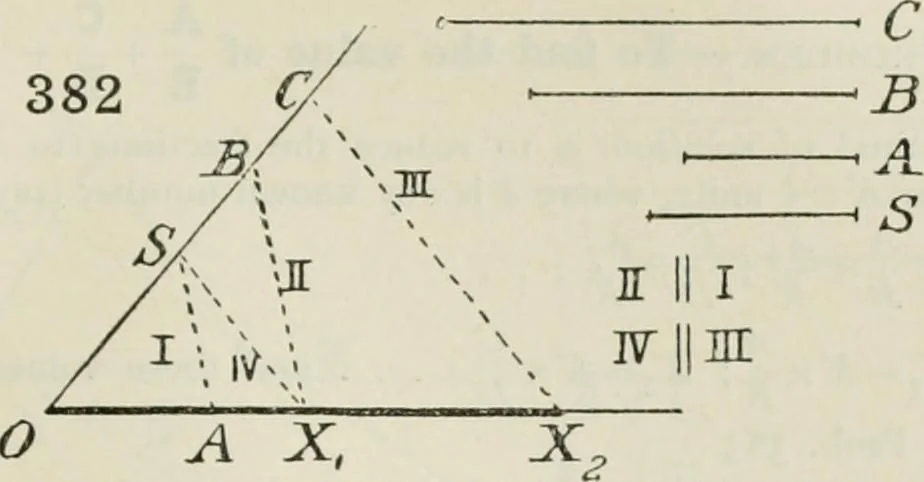

the figures indicate the order inwhich the dotted lines between the axes are drawn. A reference suchas II. || I. means that line II. is to be drawn parallel to line I. Examples. — 1. In Fig. 383, if S be the unit of length, find thenumber of units of volume in the rectangular prism of which A,B,…
