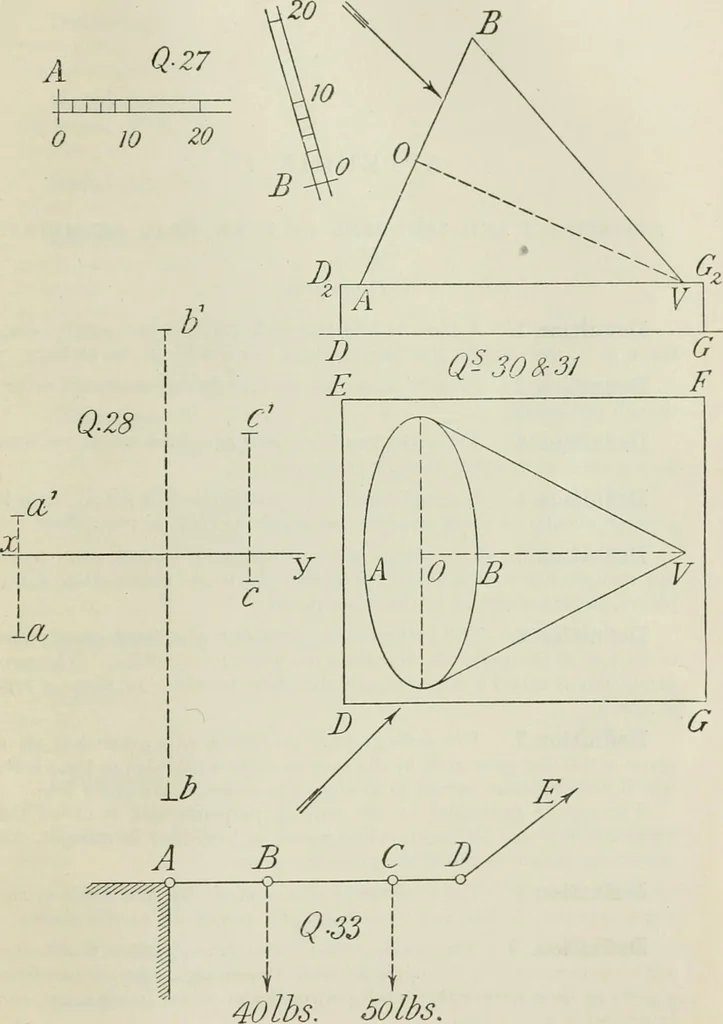

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 556
respec-tively 2 inches, 1.75 inches, and 1.25 inches in length. Find, bygraphic construction, a line representing the cubic contents of thesolid, to a unit of 1 inch. (20) *33. ABCD is a horizontal rigid bar, hinged at A, loaded ati? with40 lbs., at 6with 50 lbs., and retained in place by a cord DE… … Note.—The figures are reproduced half size. APPENDIX II DEFINITIONS AND THEOREMS OF PURE SOLID GEOMETRY Definitions Definition 1. & plane is a surface such that any two points beingtaken in it, the straight line joining them lies wholly in the surface. Definition 2. Parallel planes are such as…
