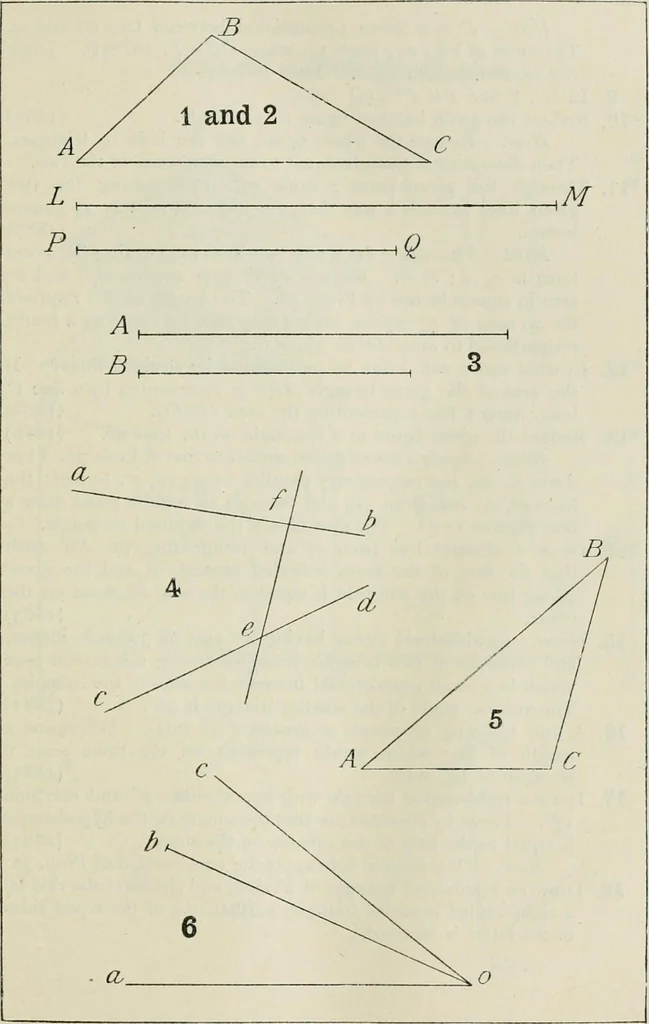

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 62
ruct an equilateral triangle which has one angular point atb on the line ob, and the remaining angular points on oa and ocrespectively. (H. 1886) 7. Draw a triangle ABC with the following dimensions. AB = ^, BC=2^, AC= 2. Inscribe in the triangle a rhombus, oneside lying in AC, and the adjoining… … 48 PRACTICAL PLANE GEOMETRY chap. Hint.—P is a mean proportional between (x - Q) and x.Therefore in Fig. 27, page 33, make OB = P, OC=Q. DrawCA perpendicular to CB. Then AB = x.9. In Ex. 8 find x if P2 = (Q-x)x. *10. Reduce the given hatched figure to a triangle. (1883) Hint.—Reduce the whole…
