Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 68

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 68

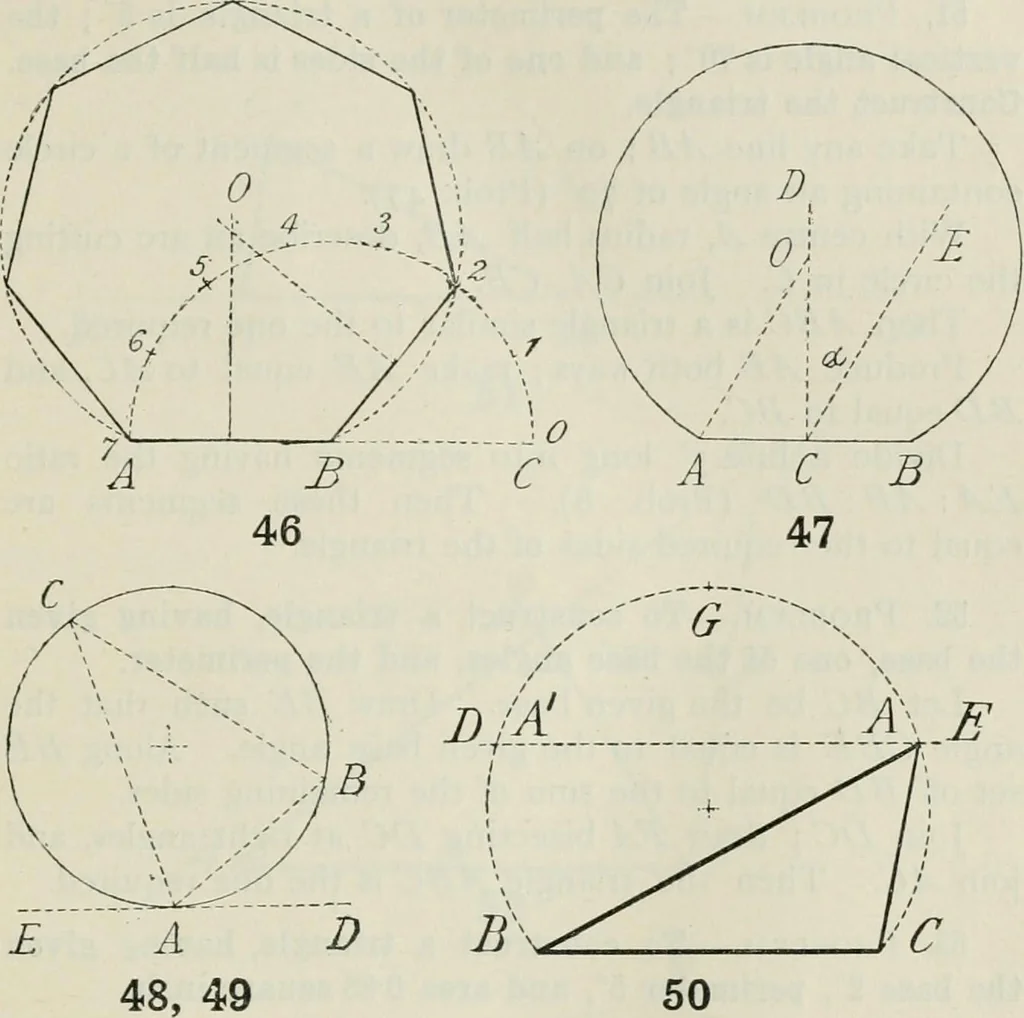

C. If the angle is obtuse, O is on DC produced. 48. Problem.—From a given circle to cut off a segmentwhich shall contain an angle equal to a given angle. Take a point A on the circumference and draw thetangent AD. Make the angle DAB equal to the given angle.Then the segment ACB is the one required.… … At any point A in the circumference of the given circledraw the tangent DE. Make the angles DAB, EACrespectively equal to two of the angles of the triangle,join BC. Then the triangle ABC is the one required. 50. Problem.—To construct a triangle, having giventhe base, vertical angle, and altitude.…

Geometry, Descriptive -- Problems, exercises, etc · Geometry, Plane -- Problems, exercises, etc · Graphic methods
