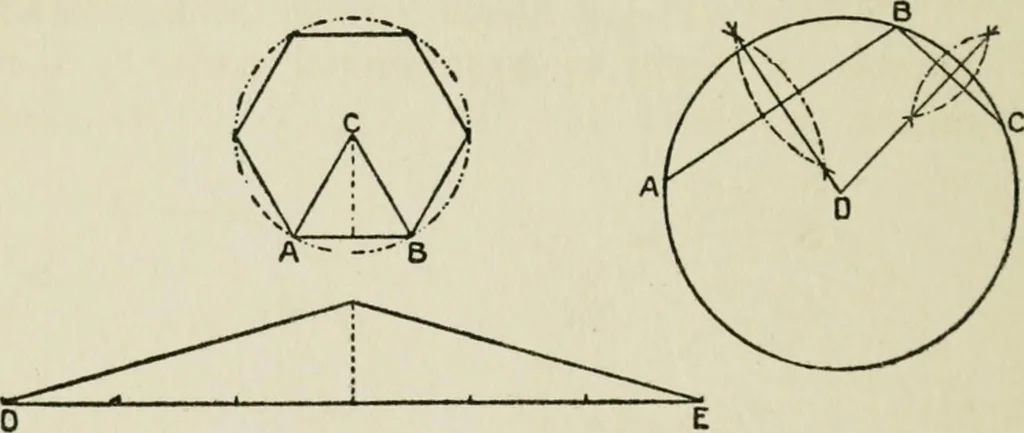

les, as those at A and B (Fig. 43), by thestraight lines AC and BC, intersecting in C, which 38 PRACTICAL CARPENTRY will be the center of the polygon. Mark the alti-tude of this elementary triangle by the dottedline drawn from C perpendicular to the base AB;then multiply together the base and… … Fig. 43. Fig. 44. AB, the base of the elementary triangle, as thereare sides in the given polygon. Upon DE describean isosceles triangle, having the same altitude asABC, the elementary triangle of the given poly-gon; the triangle thus constructed is equal inarea to the given hexagon; consequently,…
