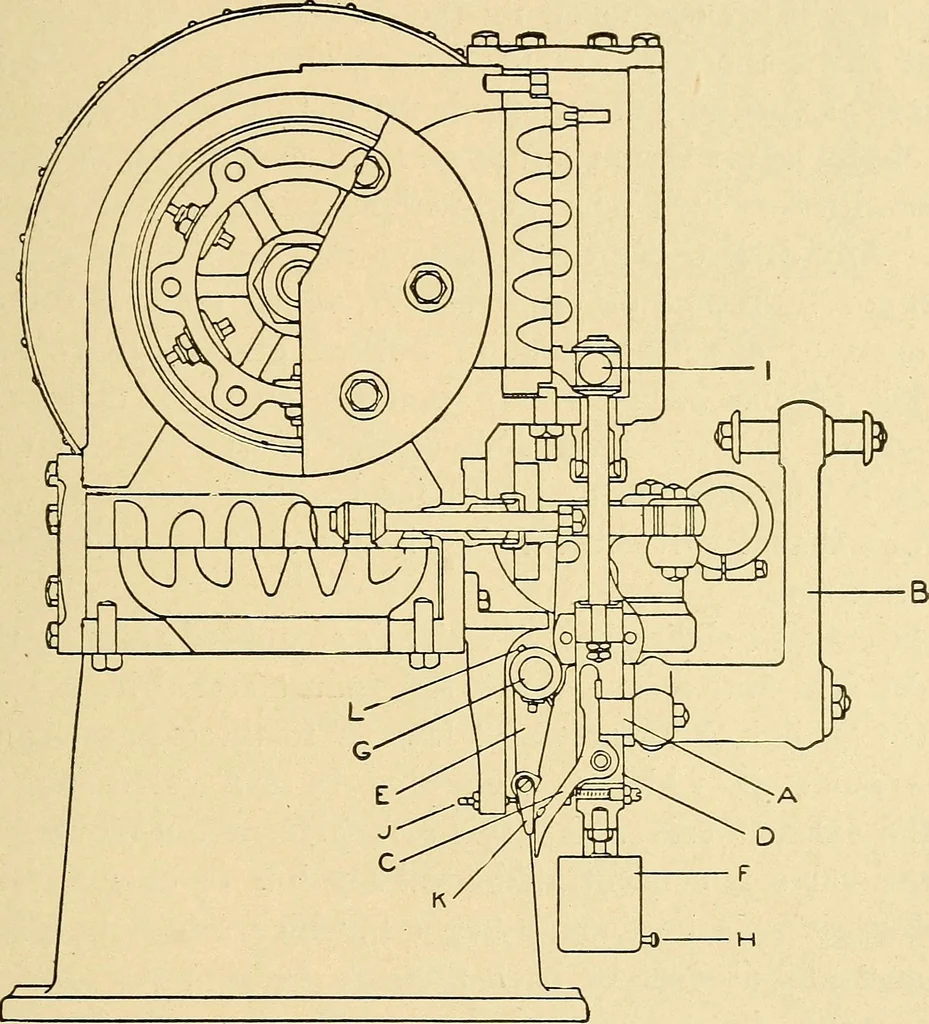

Figure 39., Section through Cylinder and Valves. by referring to cut, which represents the position the sev-eral parts occupy at the commencement of the pistonstroke. ENGINES 153 The steel lifting block A connected to the lower arm ofthe steam lever B—the top of this lever being connectedthrough… … Figure 40. on a pin on the steam-valve stem guide D. When the longarm of steam lever B is drawn toward the crank shaft by theeccentric, the block A is raised, which carries the latch and 154 PRACTICAL STATIONARY ENGINEERING guide up with it and causes the valve to open the ports. Thisupward…
