The practical testing of dynamos and motors (1905)
Smith, Charles Frederick, 1873- · Manchester Scientific Pub. Co · leaf 137

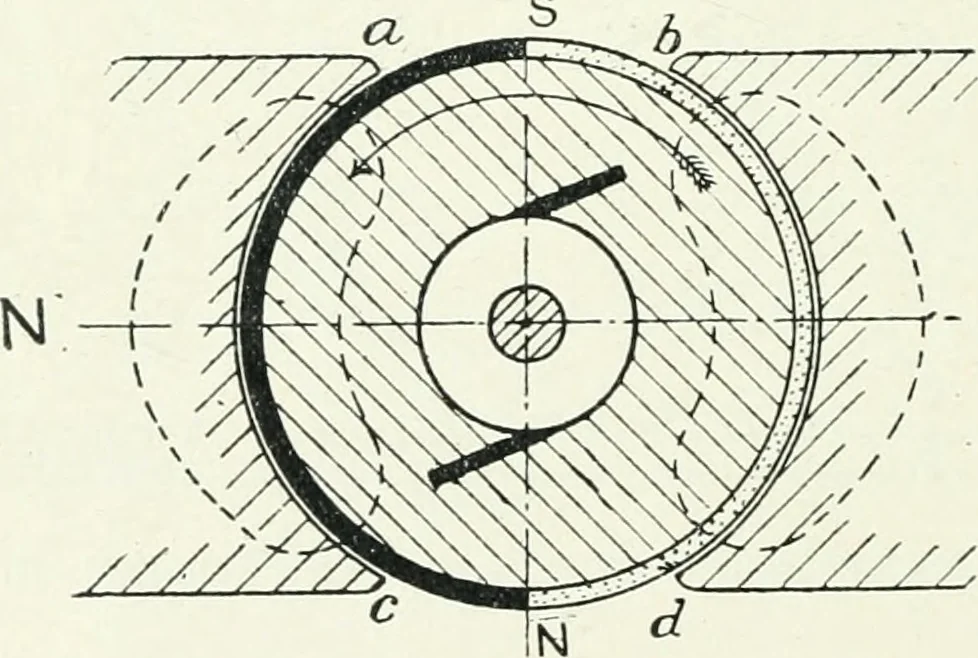

ides and flows alongthe two parallel circuits formed by the conductors^ oneach side of the armature. The effect of these parallelcurrents is to make the armature act as if magnetised witha north and south pole respectively at the ends of thediameter obtained by joining the conductors connectedto… … - s c Fig. 40.—Diagram of armature currents in a motor.* main field of the motor. The north pole formed in thearmature will therefore be attracted by the south poleof the field magnets, and tend to produce rotation of thearmature. The same action will take place between thesouth pole of the…
Dynamos · Electric motors
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
