A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations and colour (1879)
Ashenhurst, Thos. R. (Thomas R.) · Bradford : T. Brear ; London : Simpkin, Marshal · leaf 105

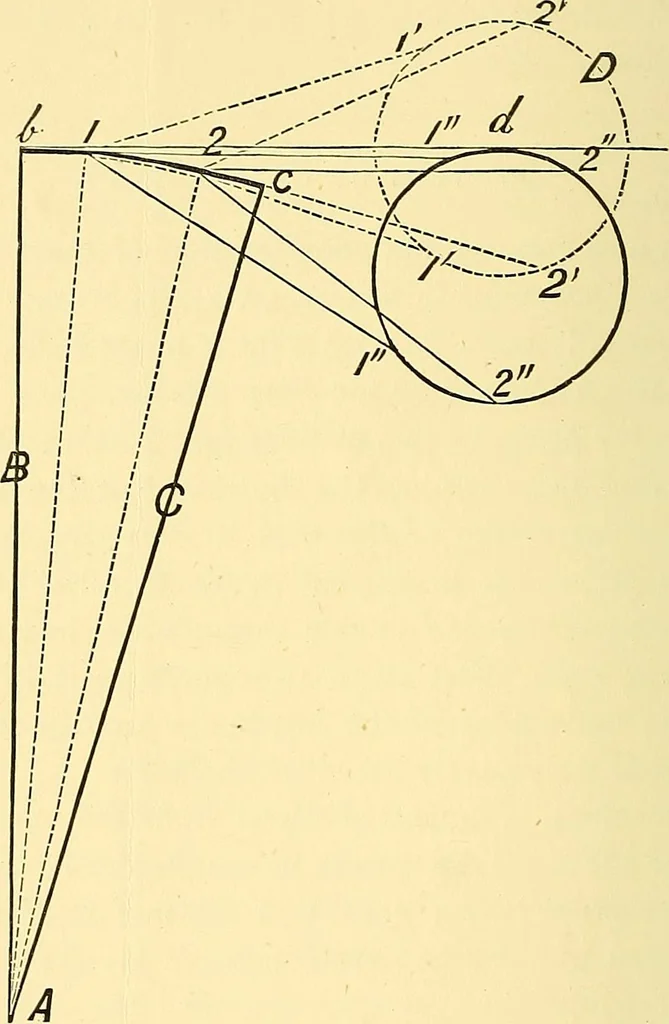

motion imparted will be a regular one,that is, the regular circular motion of the crank becomesconverted into a reciprocating rectilinear motion, a slightpause taking place at each extremity of the stroke of equal lOO WEAVING AND DESIGNING duration. If we examine the nature of the movementof the… … Fisr. 2T,. A is the centre upon which the lay moves ; the uprightarm B shows the position of the sword or arm of the laywhen the reed is in contact with the cloth; the line C is thesame arm at the other extremity of its stroke; then in itspassage it describes an arc of a circle, b c. It will be OF…
Textile fabrics · Textile design · Weaving
