A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations and colour (1879)
Ashenhurst, Thos. R. (Thomas R.) · Bradford : T. Brear ; London : Simpkin, Marshal · leaf 252

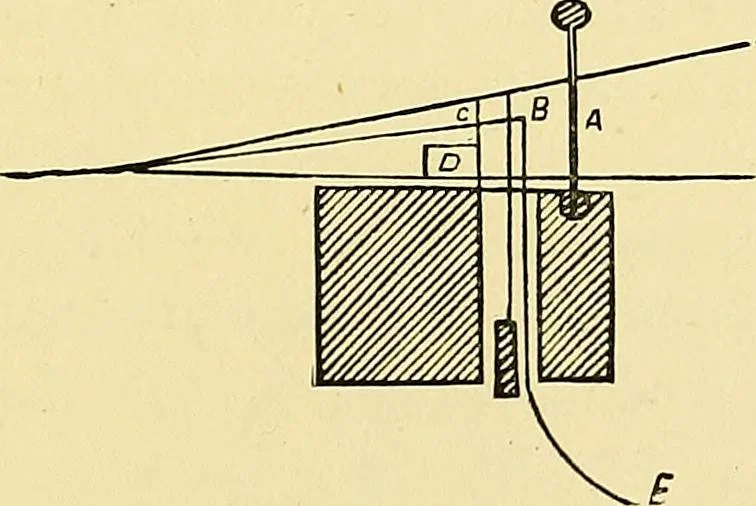

Fig. 242. is placed at the side of the loom, having grooves cut in it soas to carry the frame the proper distance for the productionof the desired pattern. Almost any pattern is capable of … Fig. 243.being produced in this manner, Fig. 241 being an exampleof a pattern made on this principle, the arrangement of theapparatus being shown at Figs. 242 and 243, one being afront elevation, and the other a section. A is the reed,B the needles which carry the thread, C the needles which 248…
Textile fabrics · Textile design · Weaving
