A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations and colour (1879)
Ashenhurst, Thos. R. (Thomas R.) · Bradford : T. Brear ; London : Simpkin, Marshal · leaf 81

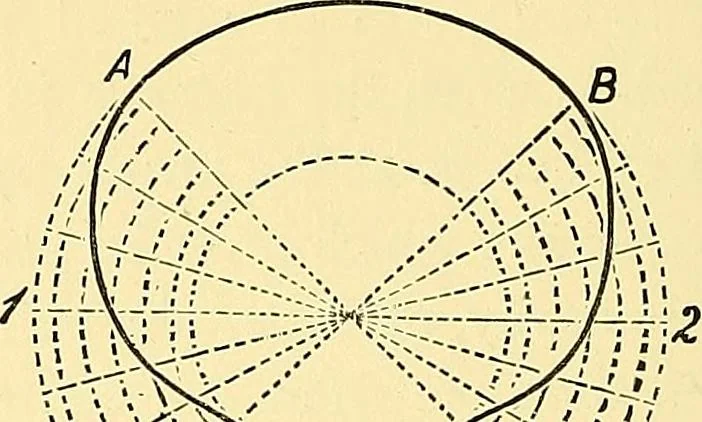

y is to thirty so will the stroke of the tappet beto the stroke of the heald. 76 WEAVING AND DESIGNING We will suppose the length of stroke of the tappet isto be three inches, the stroke of the heald, or the distancewhich it would traverse, would be four and a-half inches.Then assume that the… … Fig. 14. circle C, Fig. 14. From the same centre and a radius ofsix inches (three added to the first radius) describe theouter circle B. This gives us the relative distance of theinner and outer circle of the tappet. We will first construct a tappet for a plain cloth, whichsimply consists of the…
Textile fabrics · Textile design · Weaving
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
