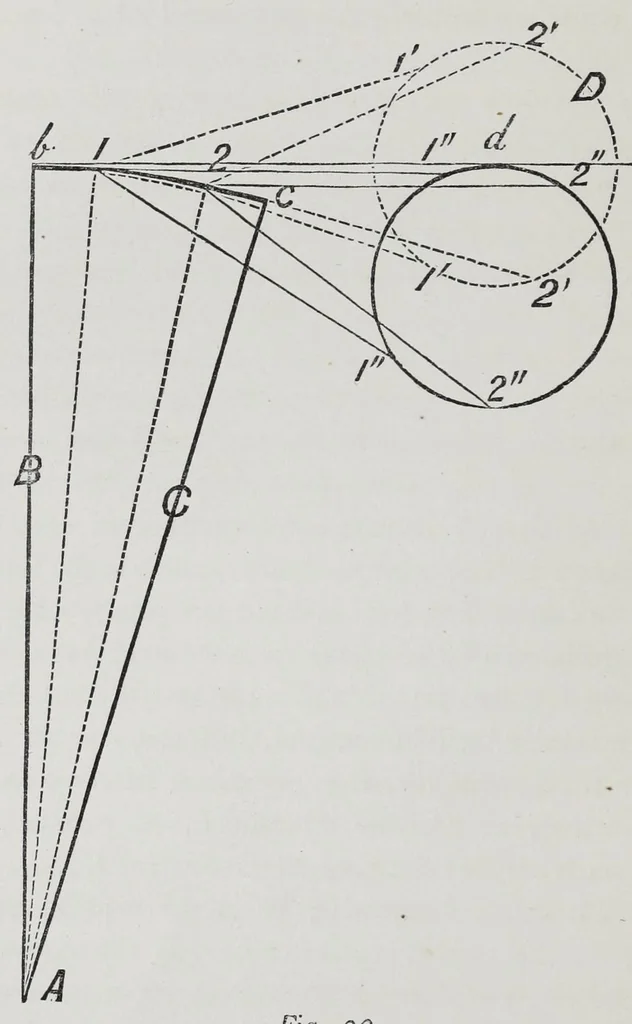

WEAVING AND DESIGNING back extremity the point of connection is brought below the plane which it occupies at the fore part. The circle D is the circle which the crank describes in its revolution, the centre d being in the same horizontal line as the point of connection at i ; then take any two… … Fig, 32. /; c, at equal distances from b and c, find the corresponding points in the circle, or the position which the crank will occupy when the lay is at those points ; this may be easily done by taking the distance from b to where the horizontal line cuts the circle, which will give the length…
