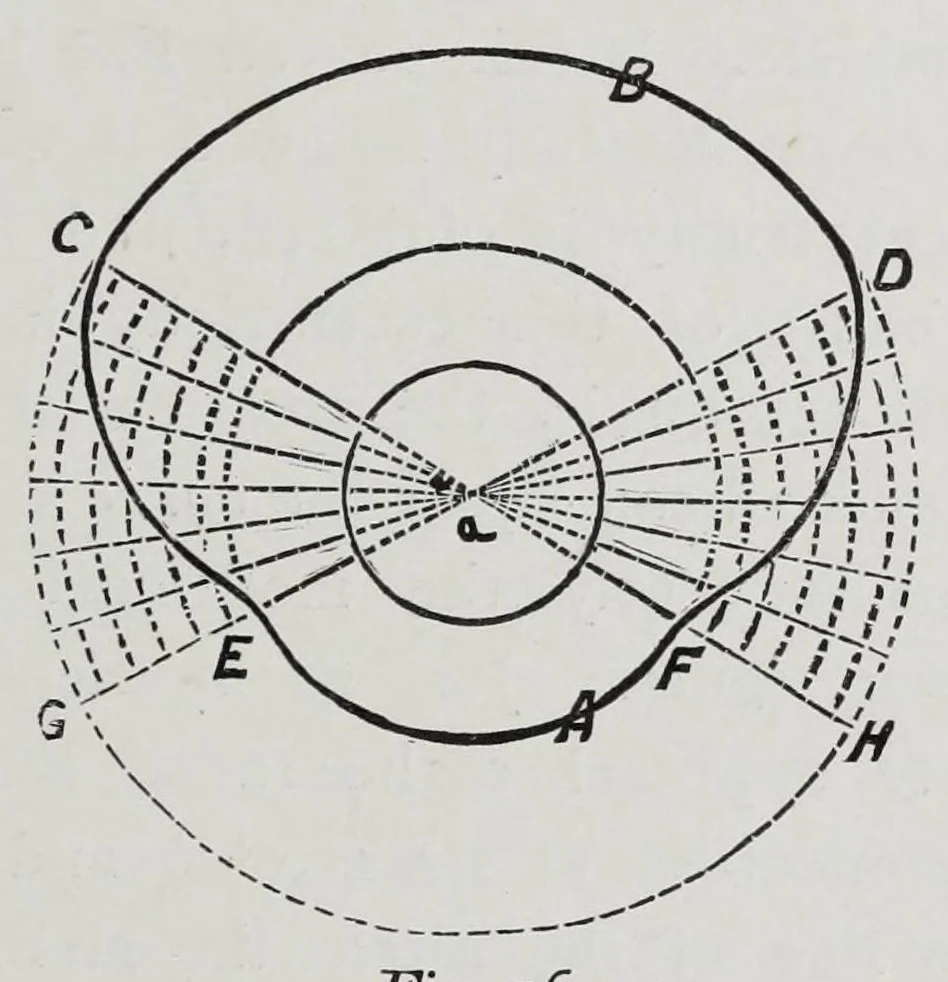

rtly closed again before the shuttle gets clear, and would consequently both retard its progress, and in all probability cause breakage of the warp. To effect this we may give a pause equal to two-thirds of a revolution of the crank shaft, which will give ample time to have the shed partly open… … Fig. 1 6. a revolution of the crank shaft. From the centre a, Fig. i6, describe the two circles a and b ; with the radius of the circle b divide the circumference into six equal parts. The arc of the circle c d will be one-third of the circumference (there is a fraction in the matter, but this is…
