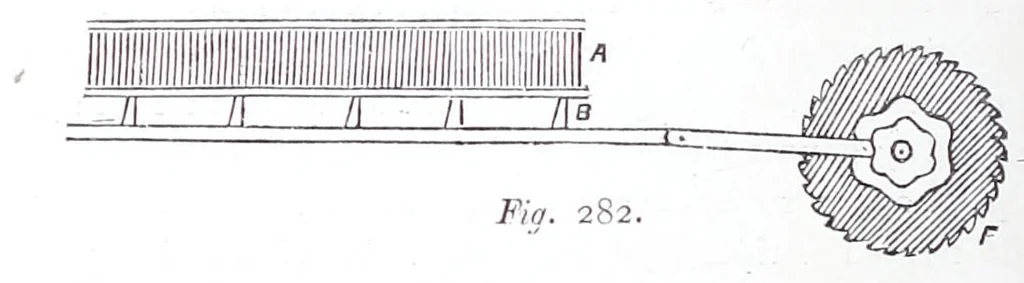

286 WEAVING AND DESIGNING for weaving the pattern mentioned on the last page. This frame is made to slide backwards and forwards from right to left, the needles being raised at the proper moment so as to allow the weft to pass under the figuring thread, and so Fig. 281. bind them into the cloth.… … the frame the proper distance for the production of the desired pattern. Almost any pattern is capable of being produced in this manner, Fig. 281 being an example of a pattern made on this principle, the arrangement of the apparatus being shown at Figs. 282 and 283, one being a front elevation, and…
