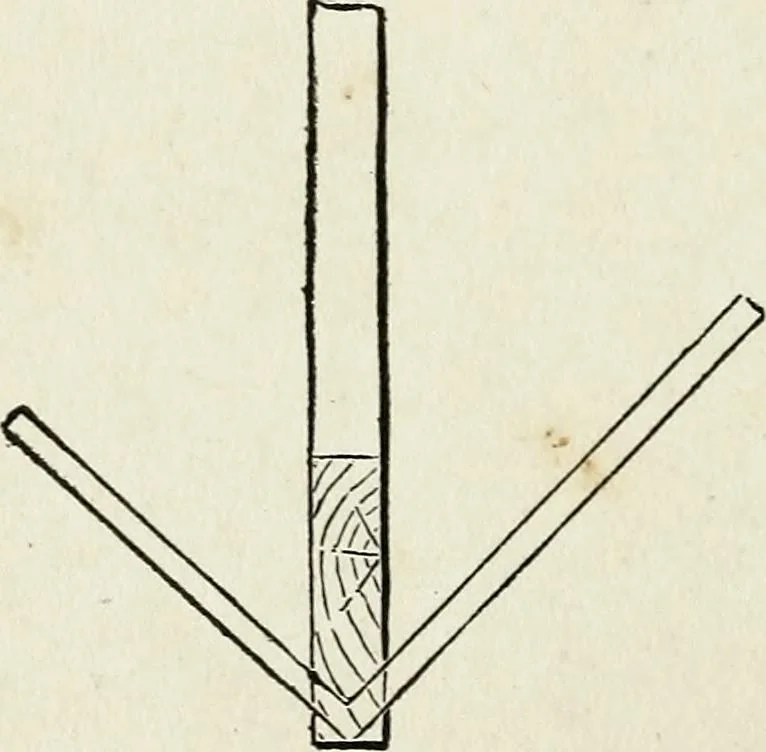

enings, so divide 13 feet9 inches by 11 you get 1 foot 3 inches. The newjack will be twice this length, the third threetimes and so on. Lay off these measurementsup the center of the back of jacks and deducthalf the thickness. Hip: For the bevel to fithip take the length in common rafters on the… … THE STEEL SQUARE 117 lay the angle of the square on the foot of hipwhere it fits the plate, taking care that it is ex-actly true from each corner, mark by and trans-fer them up the sides and you have its correctbevel. (Figs. 60. and 70.) Fig. 71 is a roof having three gables, each . 9. c being a…
