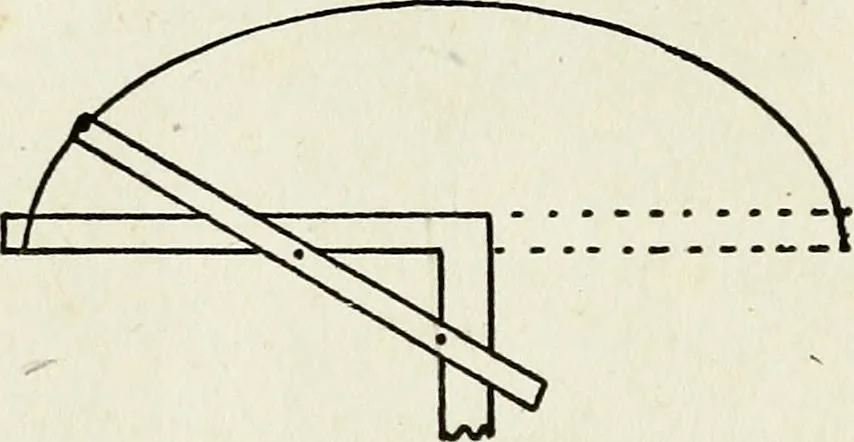

154 PRACTICAL USES OF MISCELLANEOUS RULES To make an ellipse for a three-foot opening, one foot high, drive a brad in a lath i foot from end, which gives height; another 18 inches from end, which gives one-half width; apply as illus- … Fig. no trated in Fig. no, reverse the square and it is completed. Fig. in. To make anoval, begin same as onellipse, swing around onthe one brad, which willmake a circle at thelarge end, and it isFig. in formed as illustrated. Fig. ii2. To bend a board for a circle, if the
