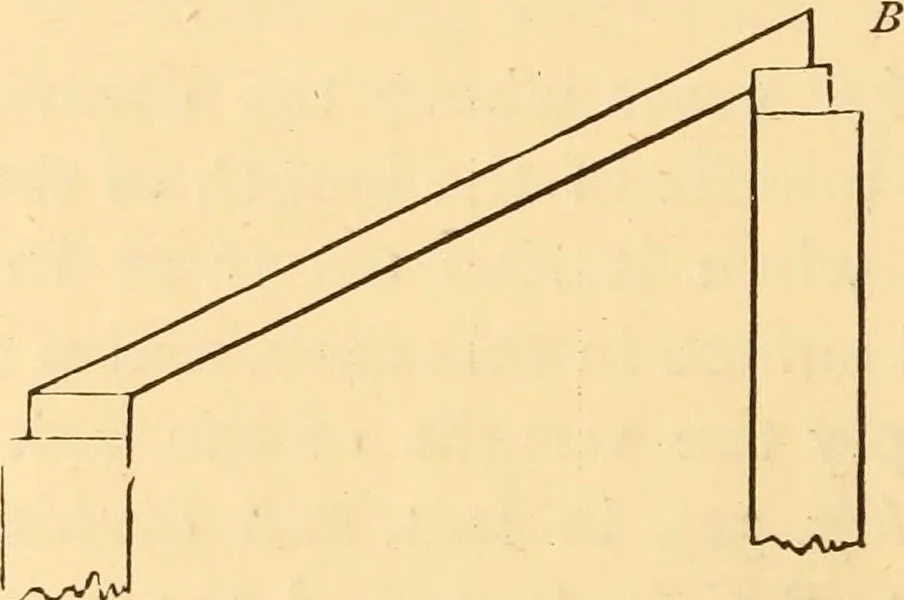

FiG. 33. ity is at the middle of its length, is exactly equal to theweight distributed uniformly over its surface. In shed or lean-to roofs, as Fig. 32, the horizontal pressurewill be entirely remov^ed if the bearings of the rafters, as Aand B {Fig. 34), are made horizontal—provided, however, … ^^. Fig. 34. that the rafters and other framing do not bend between thepoints of support. If a beam or rafter have a natural curve,the convex or rounding edge should be laid uppermost. 87.—Effect of Load on Beam.—The strain in a uniformlyloaded beam, supported at each end, is greatest at themiddle…
