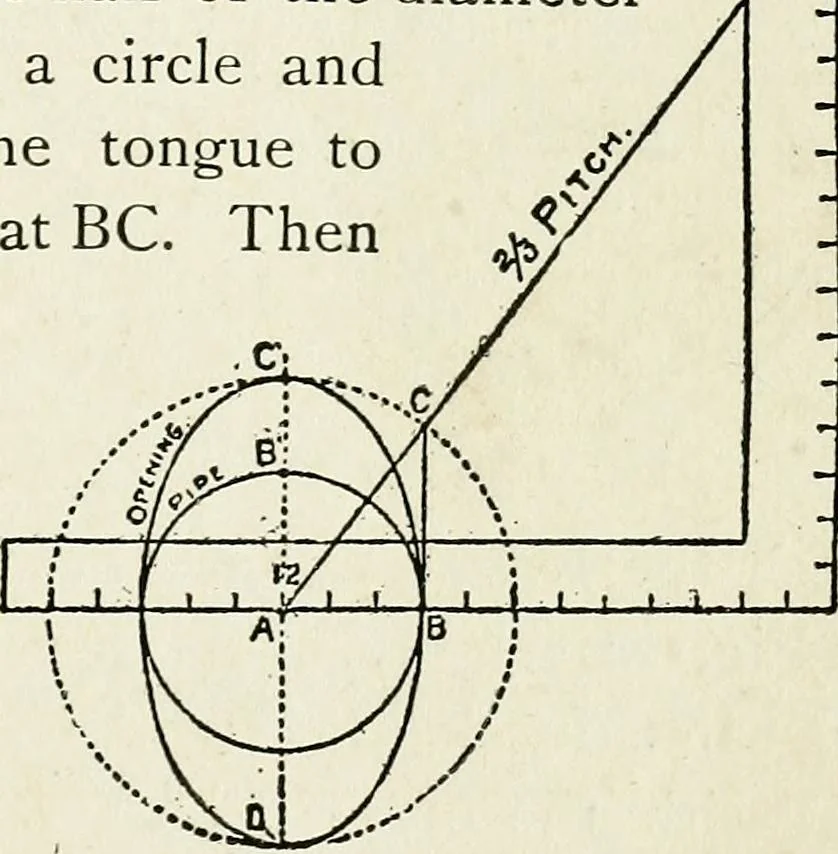

ts thepitch. Now with 12 as center and withradius equal to one-half of the diameterof the pipe draw a circle andsquare up from the tongue tothe pitch, as shown at BC. ThenAB representsone - half of theshort diameter,andAC one - half ofthe long diameter.Now to make ourillustration moreclear we will…
