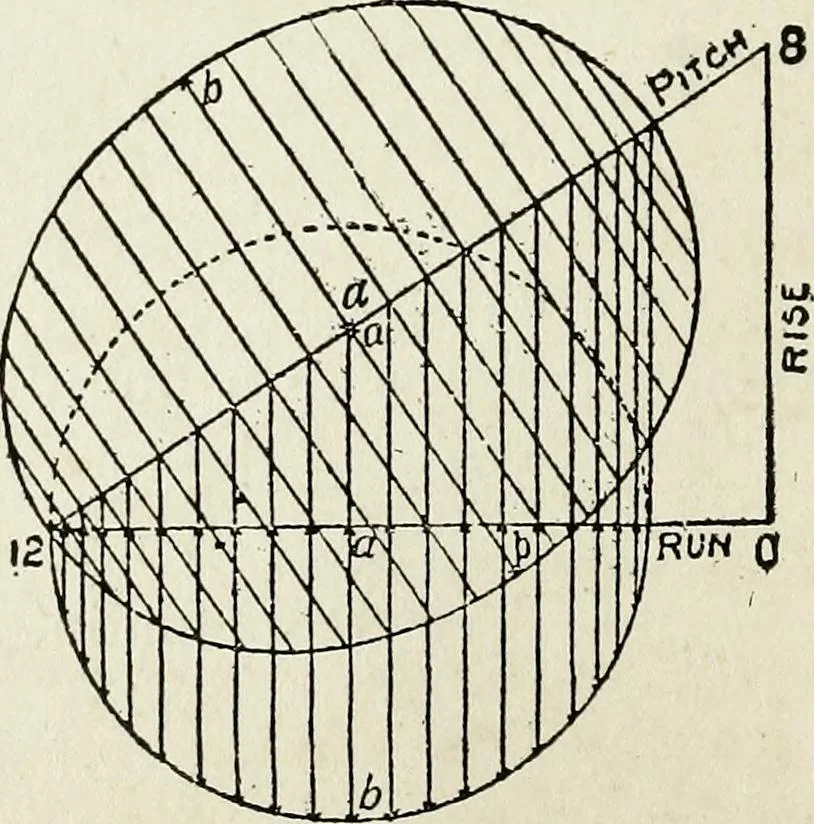

THE STEEL SQUARE 163 rise and pitch, and with one-half the diameterof the pipe as radius, with the pencil point rest-ing at 12, and center on the run, draw a semi-circle. Divide the diameter into any numberof spaces and through these, run lines at rightangles with the run from the circle to…
