A practical treatise on the steel square and its application to everyday use : being an exhaustive collection of steel square problems and solutions, "old and new", with many original and useful additions, forming a complete encyclopedia of steel square knowledge, together with a brief history of the square, and description of tables, keys and other aids and attachments (1903)

Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Riverside, Ill. : Radford Architectural Co. · leaf 46

An illustration from A practical treatise on the steel square and its application to everyday use : being an exhaustive collection of steel square problems and solutions, "old and new", with many original and useful additions, forming a complete encyclopedia of steel square knowledge, together with a brief history of the square, and description of tables, keys and other aids and attachments, 1903, leaf 46

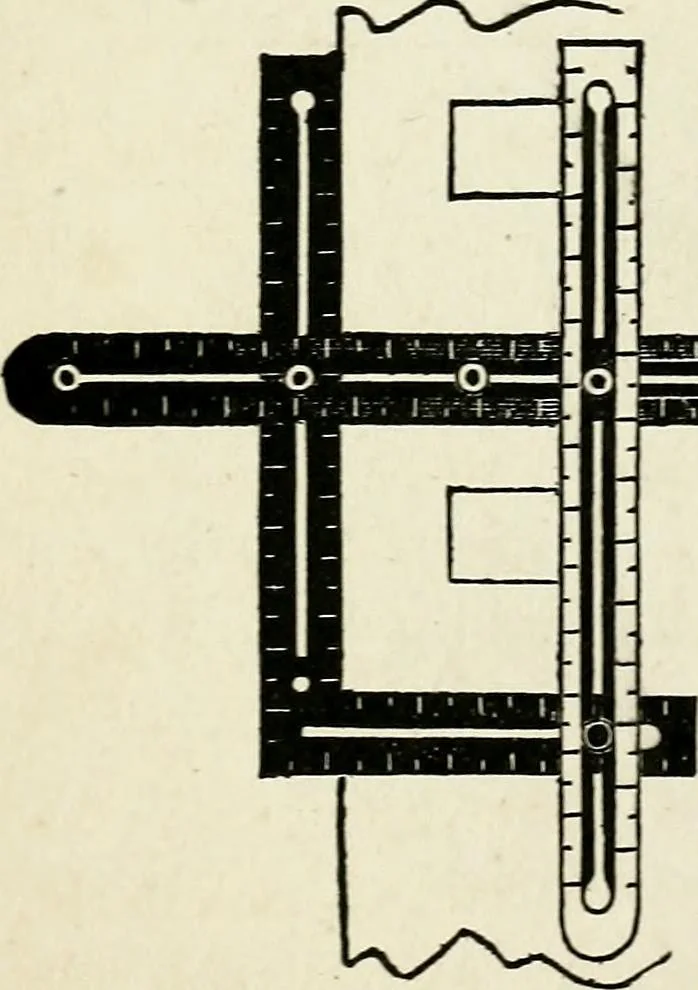

shows the instrument set for miters,Fig. 22 for laying out treads and risers for stairs, and Fig. 23 is arrangedfor laying out equalspaces either for joists,studding, raf-ters or anyother workrequiring equal spacing.The spaces may be anydistance within the ca-pacity of the length ofthe slot in the… … 44 PRACTICAL USES OF The illustration shown at Fig. 24 exhibits twosteel try-squares that are adjustable. They arealso graduated so that the stock can be set to • Iv,^^::^
