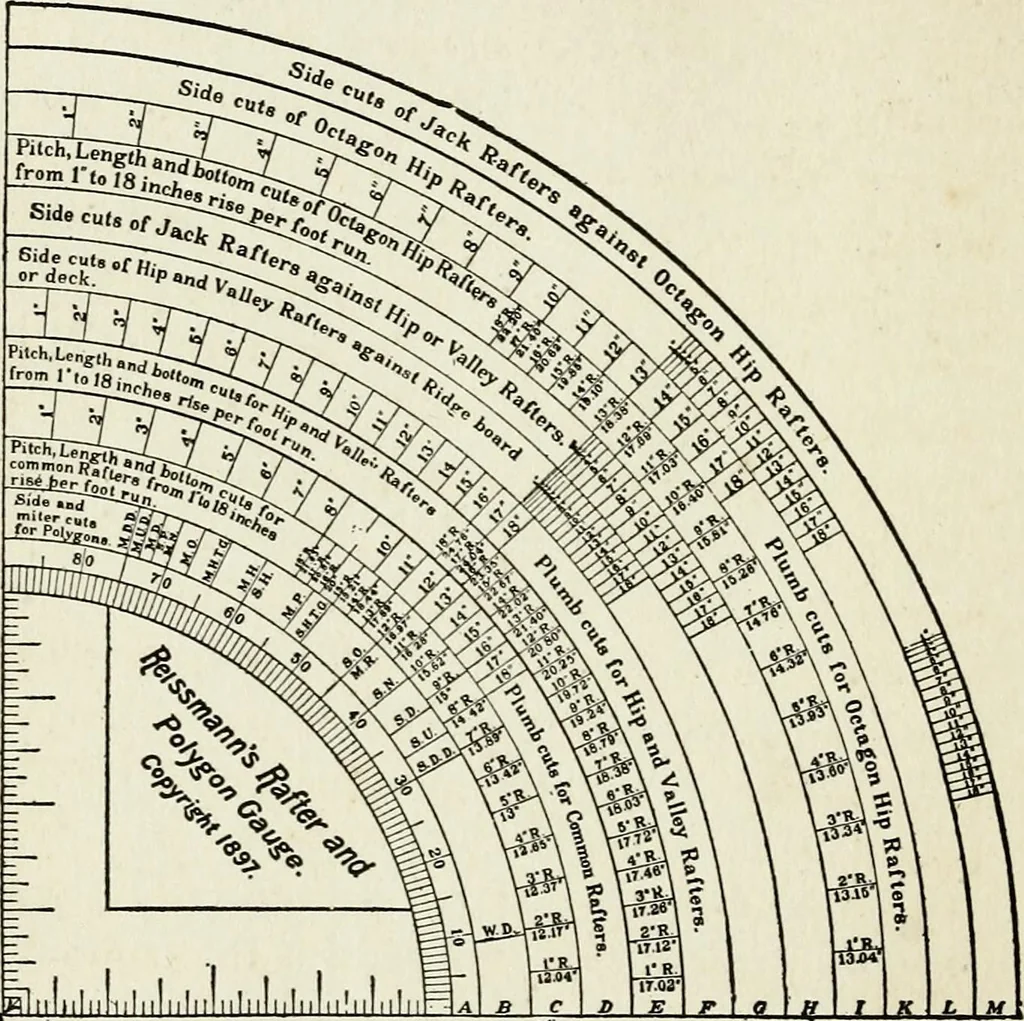

ed for the commonrafter in such roofs, it does not apply in suchcases to the hip and valley, or the length oftheir jacks. The side cuts for the jacks, how-ever, may be found by taking the run of the leftcommon rafter on the tongue and the length ofthe right common rafter on the blade. Theblade will… … jHliilnliiluliiliiliiliiliiliiltiliiliiliilii Fig. 30. Reissmanns Rafter and Polygon Gauge Another great help to the workman is shownat Fig. 30. This is a rafter and polygon gauge,in which the figures are given for all kinds ofcuts in rafters, hips, jacks, valleys for octagonsor other polygons by…
