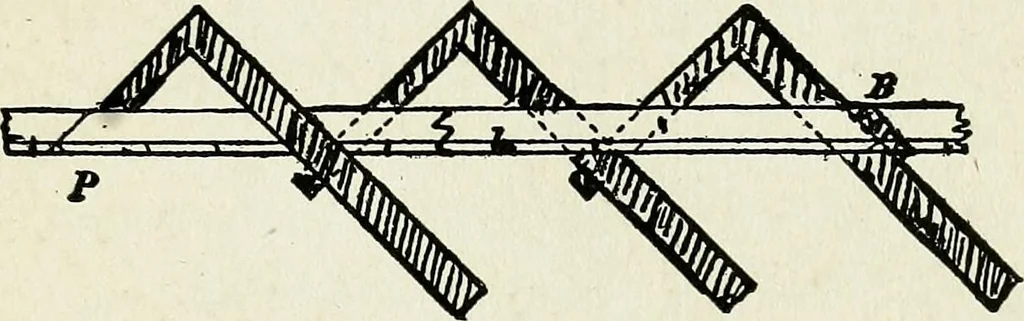

ame height as the riser aboveit, namely, 7 inches. This is wrong, as the first THE STEEL SQUARE 67 riser should always be cut the thickness of thetread less than those above it, as shown by thedotted lines on the bottom of the string, thenwhen the tread is in place it will be the sameheight from… … Fig. 35. Showing Method of Laying Out Rafters to a Line fence at the 8 mark on the blade, Fig. 35, andat the 12 mark on the tongue, clamping it tothe square with i% screws. Applying thesquare and fence at the upper end of the rafterwe get the plumb-cut P at once. By applyingthe square as shown…
